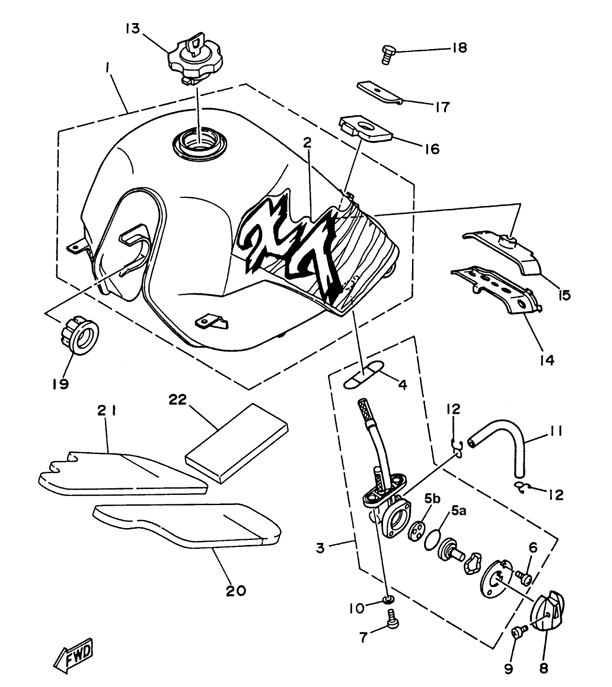

| REF NUM | PART NUMBER | DESCRIPTION | REQ | Retail Price |
| 1 | 3RW-24110-00-W2 | FUEL TANK COMP. (WHITE) (UR NON-CA) | 1 | 360.64 |
| 2 | 4BE-24240-20-00 | ...GRAPHIC SET | 1 | 97.29 |
| 3 | 3RW-24500-00-00 | FUEL COCK ASSY 1 | 1 | 47.33 |
| 4 | 4X8-24512-00-00 | ...O-RING SEAL BEWEEN TAP AND TAN | 1 | 3.79 |
| 5a | 3AJ-24534-00-00 | ...O-RING SEAL, COCK | 1 | 2.95 |
| 5b | 3AJ-24523-00-00 | ...3 HOLE PACKING WASHER | 1 | |
| 6 | 98580-03008-00 | ...SCREW, PAN HEAD | 2 | 1.23 |
| 7 | 90149-06011-00 | SCREW | 2 | 2.95 |
| 8 | 4FD-24524-00-00 | LEVER, COCK | 1 | 9.67 |
| 9 | 98517-03008-00 | SCREW, PAN HEAD | 1 | 0.74 |
| 10 | 90202-05187-00 | WASHER, PLATE | 2 | 1.23 |
| 11 | 90445-10007-00 | HOSE (L110) | 1 | 0.00 |
| 12 | 90467-09006-00 | CLIP | 2 | 2.52 |
| 13 | 11H-24602-03-00 | CAP ASSY (UR NON-CA) | 1 | 44.17 |
| 14 | 1KH-24187-00-00 | WASHER, SPECIAL | 1 | 9.06 |
| 15 | 1KH-24182-00-00 | DAMPER, LOCATING 2 | 1 | 11.68 |
| 16 | 30X-24183-01-00 | DAMPER, LOCATING 3 | 1 | 5.47 |
| 17 | 30X-24186-01-00 | WASHER, SPECIAL | 1 | 5.47 |
| 18 | 95817-06012-00 | BOLT, FLANGE | 1 | 0.84 |
| 19 | 4H7-24181-00-00 | DAMPER, LOCATING 1 | 2 | 5.90 |
| 20 | 3RW-2414H-00-00 | DAMPER, PLATE 1 | 1 | 3.15 |
| 21 | 3RW-2414J-00-00 | DAMPER, PLATE 2 | 1 | 3.15 |
| 22 | 11H-21747-00-00 | DAMPER | 1 | 4.40 |
