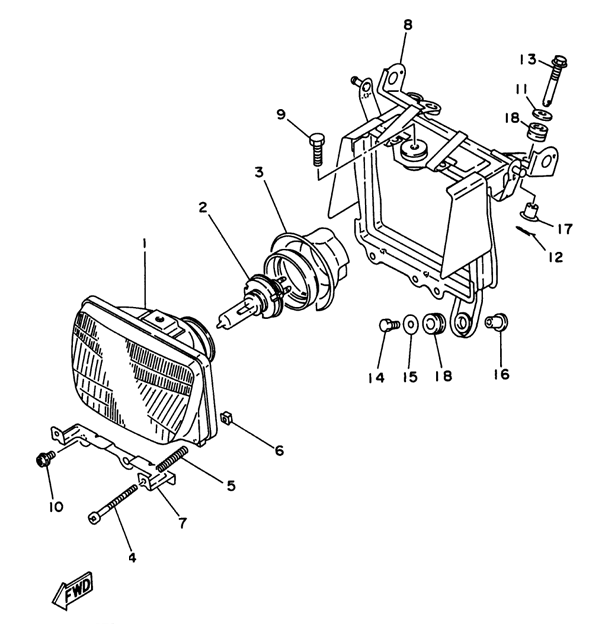

| REF NUM | PART NUMBER | DESCRIPTION | REQ | Retail Price |
| 1 | 4BE-84320-00-00 | LENS ASSY | 1 | 63.09 |
| 2 | 1ML-84314-00-XX | WIRE, STARTER (D:5MM, 1.7M) (HALOGEN) | 1 | 18.45 |
| 3 | 2F9-84397-01-00 | COVER, SOCKET | 1 | 15.78 |
| 4 | 3TB-84325-00-00 | SCREW, RIM FITTING | 2 | 3.15 |
| 5 | 341-84332-60-00 | SPRING, SCREW | 2 | 5.26 |
| 6 | 198-84334-60-00 | NUT, ADJ | 2 | 4.40 |
| 7 | 3TB-8431R-00-00 | STAY, SETTING | 1 | 9.88 |
| 8 | 4BE-84311-00-00 | BODY, HEADLIGHT | 1 | 71.01 |
| 9 | 3TB-84372-01-00 | BOLT, LAMP STAY | 1 | 2.31 |
| 10 | 3TB-84329-00-00 | BOLT, WING 1 | 2 | 1.90 |
| 11 | 90202-06013-00 | WASHER, PLATE | 2 | 0.74 |
| 12 | 90468-12120-00 | CLIP | 2 | 1.45 |
| 13 | 3TB-84137-00-00 | BOLT, SPECIAL | 2 | 5.67 |
| 14 | 97017-06020-00 | BOLT (UR) | 1 | 0.04 |
| 15 | 90201-065F3-00 | WASHER, PLATE | 1 | 1.23 |
| 16 | 90387-06388-00 | COLLAR | 1 | 3.36 |
| 17 | 90387-07391-00 | COLLAR | 2 | 3.36 |
| 18 | 90480-14023-00 | GROMMET | 3 | 1.23 |
