Rocker box for the 6-inch
|

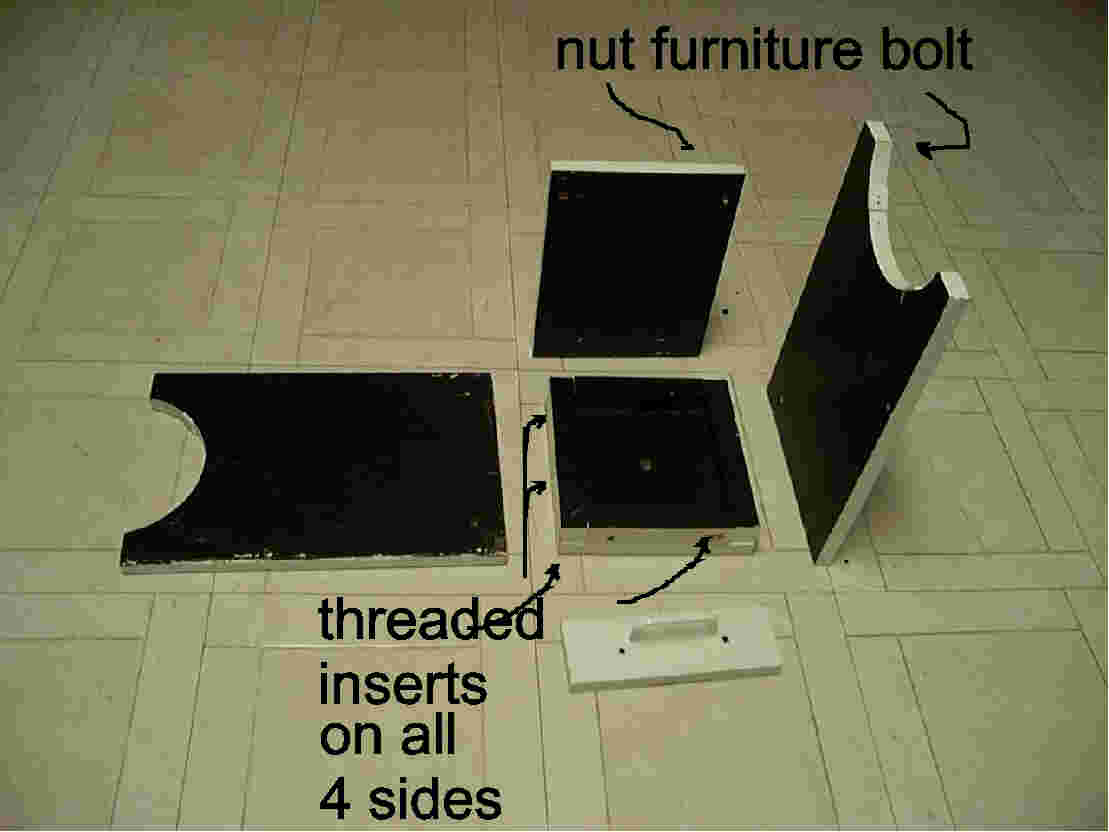

The rocker box comes out of the suitcase unassembled. It bolts together using brass threaded inserts such as the ones shown in the picture below.
The arc was cut on a bandsaw and the |
|
Brass and steel threaded inserts are available in many sizes at hardware stores . They have wood threads on the outside and bolt threads on the inside.
The 'furniture bolt' on the right is |
 |

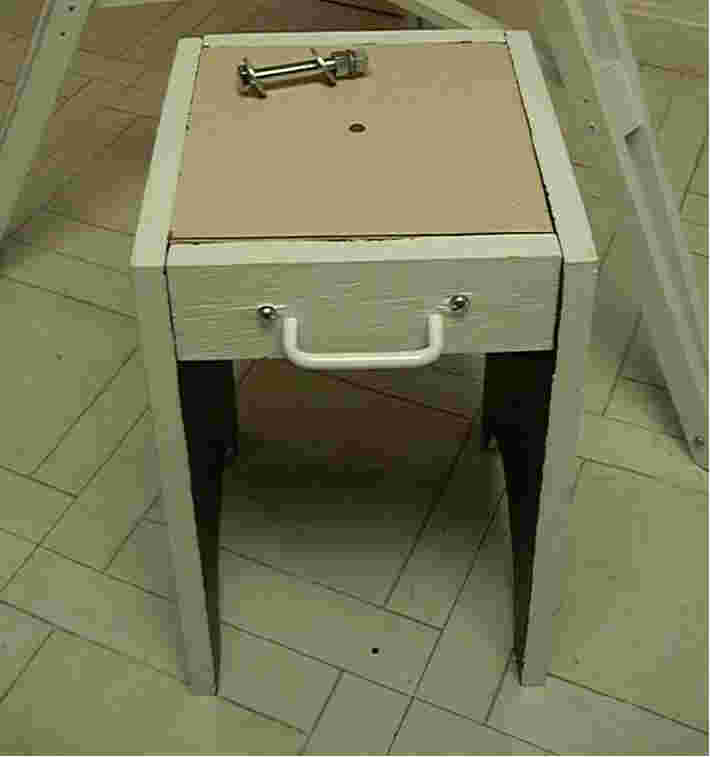

Rocker box assembled and upside-down
Bottom of rocker box has formica
The pivit bolt is a 3/8" carriage |
 |

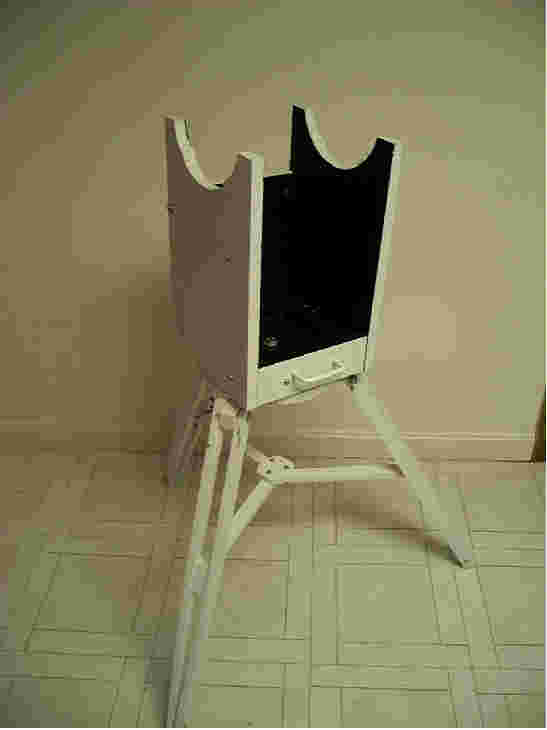

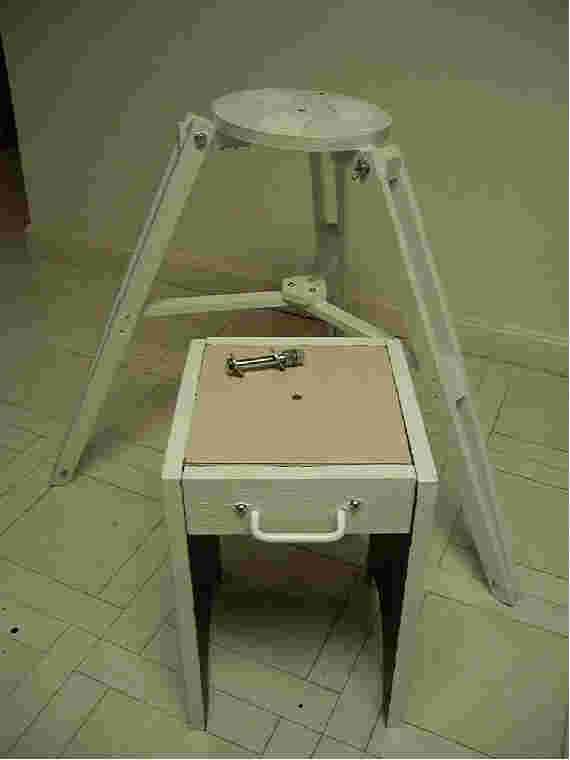

Left: Rocker waiting to go on to the tripod.
Right: Rocker, bolted |
 |
