Pinion Race and Seal Installation
|
|
|
|
|
|
|
- Place the outer bearing race in position to be driven into its perch. I used the old pinion bearing
and the installation tool to drive the race flush
into the housing.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

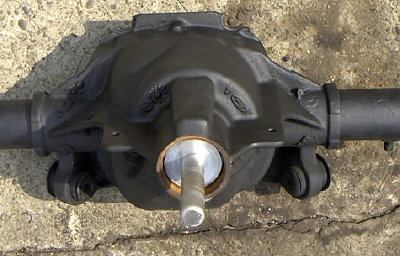

Bearing race in place with old pinion bearing in
place to help drive the race in flush to the housing.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

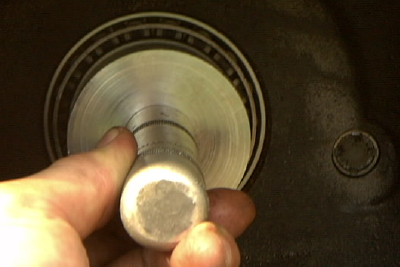

The installation tool used to drive the bearing race
into place.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

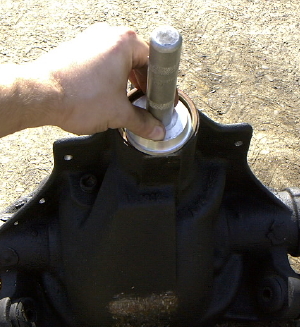

The installation tool used to drive the race flush
into the housing.
|
|
|
|
|
|
- Place the inner pinion bearing into position in the bearing race. Place the pinion seal into the
housing and drive in with the installation tool.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

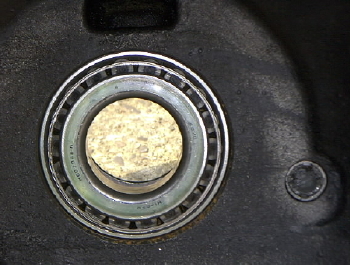

The bearing in position.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

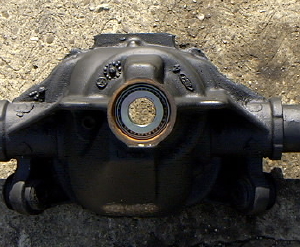

The pinion seal set in place.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Driving the pinion seal into the housing.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
