Backbone Switch

D-Link

DGS-3324SR

24-Port Managed Layer 3 Switch

• 24 ports (10/100/1000Base-T) w/ 4 combo SFP/mini-GBICs
• Universal UTP Cable Recognition For Straight Through and Cross-over Cables
• 2 Integrated Stacking Ports
• 16,000 MAC Address Table
• 88Gbps Capacity
• Store-and-Forward Transmission
• Stores up to 255 static VLANs and 4,000 dynamic
• Size: 1U

http://www.dlink.com/products/?pid=294

CLASSROOM SWITCH

D-Link

DGS-1026G

24-Port Unmanaged Layer 2 Switch

• 24 ports (10/100Base-T)
• 2 Ports (10/100/1000Base-T)
• Universal UTP Cable Recognition For Straight Through and Cross-over Cables
• 8,000 MAC Address Table
• 8.8 Gbps Capacity
• Store-and-Forward Transmission
• Size: 1U

http://www.dlink.com/products/?pid=76

DMZ SWITCH

D-Link

DGS-1008TL

8-Port Unmanaged Layer 2 Switch

• 8 Ports (10/100/1000Base-T)
• Universal UTP Cable Recognition For Straight Through and Cross-over Cables
• 8,000 MAC Address Table
• 16 Gbps Capacity
• Store-and-Forward Transmission
• Size: 1U

http://www.d-link.com/products/?pid=238

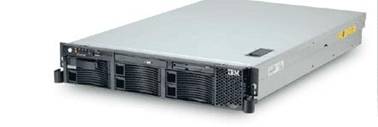

FIREWALL (Server PC)

IBM

x345 Series Server

• Intel Xeon 2.80 GHz Processor
• Level 2 Cache: 512 KB
• 2 Gb PC2100 CL2.5 ECC DDR SDRAM
• 36.4 GB Ultra 320 SCSI 15K RPM
• 2x Dual Port Gigabit Ethernet Adapter
• Slots x Bays (avail): 5(3) x 8(6)
• Size: 2U

• OS: SmoothWall Express
  http://www.smoothwall.org/

ROUTER

Cisco

3661-AC

3660 6-Slot Modular Router – AC w/ IP Software

• Multi Service Access Device

• Memory:    32 MB SDRAM
                    8 MB FLASH
• Fast Ethernet Module
• 2x “NM-1GE Cisco Gigabit Module”
• Slots: 5
• Size: 5U

http://cisco.com/en/US/products/hw/routers/ps274/ps279/index.html

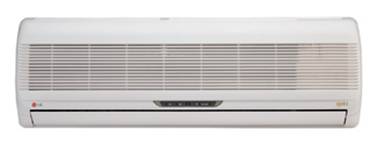

CLIMATE CONTROL

LG Electronics

LSQ090H

Single-Split Wall Mount Air Conditioner

Product Website

CABLING

• 305m Cat6 Solid Bulk Cable
• RJ-45 Connector for Solid Cable

Rack / Cabinet

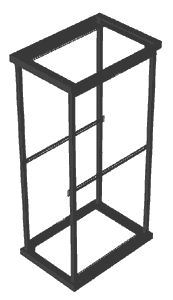

• Deep Rack Frame

• Height: 24U
• 600mm Deep

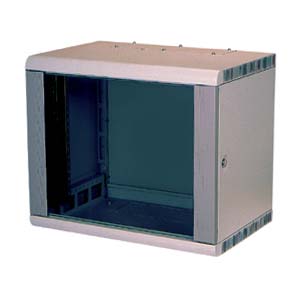

• Wall Mounted Cabinet

• Height: 6U
• Lockable Glass Door
