REMOTON

WIRELESS HOME SECURITY SYSTEM

New Product For your home protection using wireless system

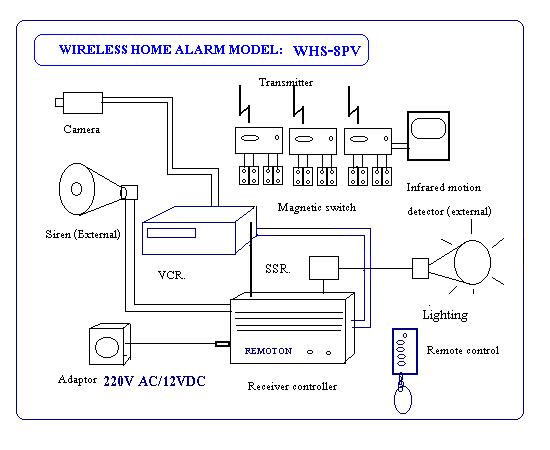

Wireless home security system REMOTON model WHS-8PV controls 8 points expandable just installed sensing devices can be connected to VCR controlled by remote control 4 button and easy to install by yourself.

Specifications/ Features

No wiring to receiver controller just connected two wire from magnetic swith to transmitter.
Controls receiver controller with 4 button remote control can be controlled within 50 metres.
Reset a pierzo siren after the unit is triggered by push button "A" of a remote control.
Select Mode : ready mode push button "B" red Led will be lit system ready to activate if push button "C" indicates status silent mode green Led will be lit .
Automatic reset siren with a preset time 3 minutes after the unit is triggered.
Can be test tranmitter by push button "Test" at transmitter
In case of S.OS. by push button "D" at remote control siren will be activated immediately.
One output relay for connection to VCR's button record and play to record events.
One output relay for pre-determined time 5 minutes to stop button "stop" of VCR.
One output to connect opto-isolate solit state relay for lighting 220V 3Amps.
One transmitter can be connected up to 4 sensing devices with output NO. type and expandable for saving cost of transmitter.
Transmitter covers a range of 50 metres maximum and easy to install by glue tape.
Compact size of receiver controller dimensions: 107x158x35 mm.Built-in pierzo siren more than 95 dB can be to external siren
Power supply with AC adapter and battery 9 V DC to standy in case of power failure or disconnect by intruder and easy to install by fix on wall-mounted with 2 hole at backside or just stand on desk.
Can be connected to Infrared motion detector with output NO. type (excludes)
Can be connected to a break glass swith (excludes)

MODEL:WHS-8PV INCLUDES

Transmitter x 4 sizes 50x75x20 mm. Color: gray included a battery12V 4 PCS.
Receiver controller x 1 sizes 215x168x70 mm.Color: gray built-in pierzo siren.
4 button remote control X 1 color:black included a battery 12V 1 piece.
Magnetic swith x 8 pairs contact NO.type
Solid state relay module x 1 (SSR)for lighting 220V 3 amp.
AC adaptor x 1 220V AC/12V DC.
Wires for magnetic switch x 8 pairs and glue tape x 8 pieces.
comes with an instruction sheet and warranty card for 1 year limited.
