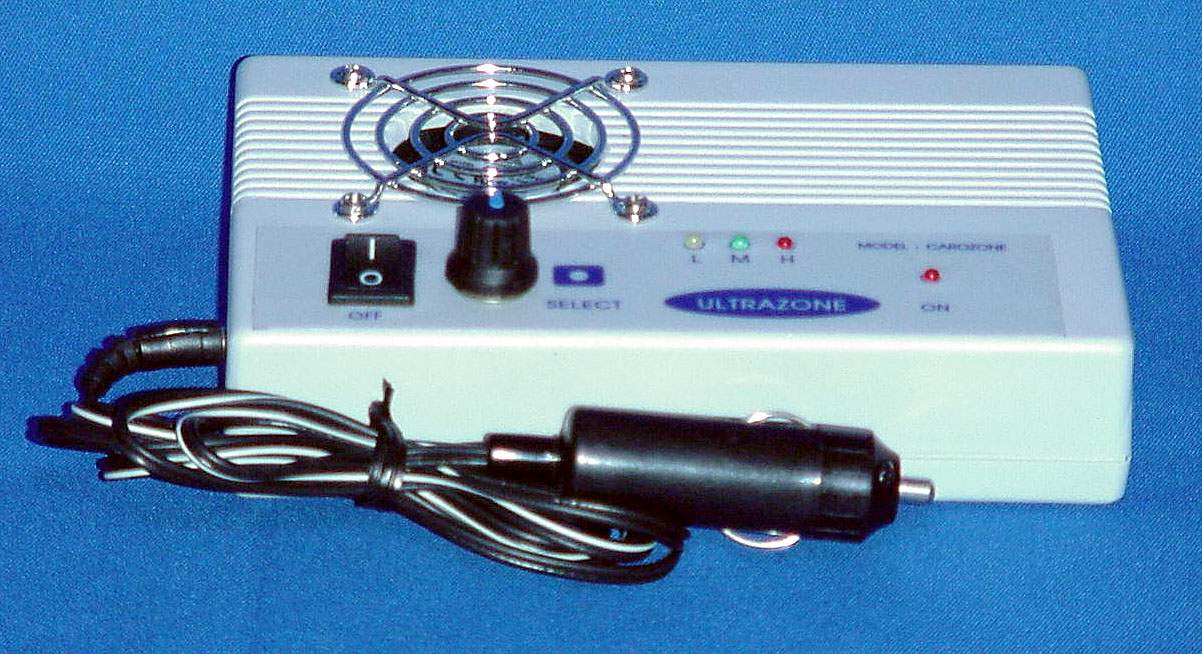

New Design & new improvel!! Ozone generator for car,desk office and homeused using Microcontroller-controlled for reliability and best price.

FEATURES:

Compact size & slim type thickness is 35 mm.
Reliability & efficiency adjustable auto timer 3 levels on 1min. off 5 min.at "L" on 2 min.off 6 min.at "M" and on 3 min. off 7 min at "H" with Led indicates position.
Using MICROCONTROLLER-controlled functions as auto timer for reliability & accuracy.
Using Corona Discharge plate type
Connected with cagarette plug-in or adaptor 12 V DC 1 amp.minimum
Safety with low voltage & friendly environment

Technical Data & Specifications

Ozone Output	20 mg/hr. Approximately
Ozone Generation Method	Corona Discharge
Electrical Requirement	10.5 - 18 V DC.
Adjustable auto timer 3 level	At " L " on 1 min.off 5 min. at "M" on 2 min.off 6 min.at "H" on 3 min.off 7 min. with Led indicates level
Protection System	Thermal-cutoff at 98 C. and fuse
Color	Gray
Casing Unit	Plastic ABS.
Dimension	107 (W) x 158 (L) x 35 (H) mm.
Warranty	1 Year limited

We reserve the right to make change without prior notice.
For more information contact us.
