REMOTON

WIRELESS HOME SECURITY SYSTEM

New Product For Your Home Protection using Wireless System
Wireless home alarm REMOTON MODELWHS-5PNS and WHS-5PWS compact size no wiring to controller 4 button remote control and
easy to install by yourself (Do-it-yourself).

MODEL : WHS-5PNS

MODEL : WHS5-PWS

Specifications/ Features

No wiring to controller just connected short wire from magnetic switch to transmitter.
4 button remote control transmits a range of 50 metres maximum.
Reset a pierzo siren after the unit is triggered by push button "A" of a remote control.
Select Mode : ready mode push button "B" red Led will be lit system ready to activate if push button "C" indicates status silent mode green Led will be lit .
Automatic reset siren with a preset time 3 minutes after the unit is triggered.
Can be tested receiver controller by push button "D" at remote control.
In cas of S.O.S push button "D" at remote control the siren will be activated immediately.
One transmitter can be connected to a different type of sensing devices output NO.type and expandable for saving cost.
Transmitter covers within 50 metres and easy to install just uses glue tape.
compact size receiver controller dimensions 107x158x35 mm.Built-in pierzo siren output 95 dB. can be connected to external siren.
Power supply from AC adaptor and a battery 9V for standby in case of power failure or disconnected by intruder.
Built-in timer when the system activated after a pre-determined time 3 minutes the siren will be de-energized.
Can be connected to auto-dialer (excludes)
Can be connected to infrared motion detector output NO. type (excludes)
Can be connected to a break glass switch (excludes)

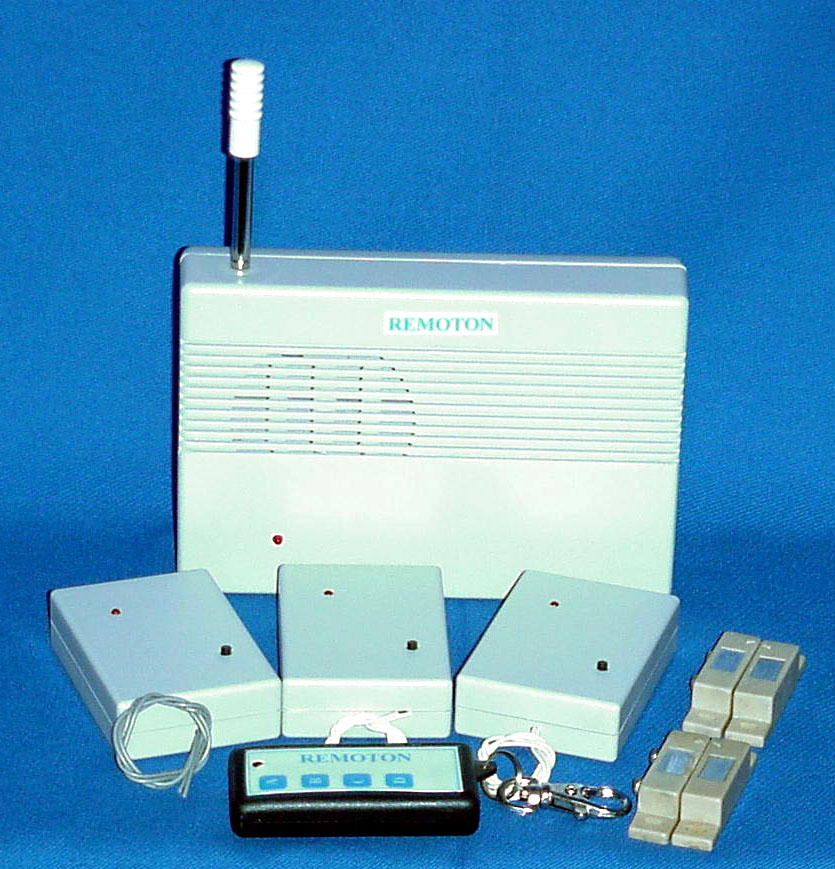

STARTER KIT 5 PIECE MODEL : WHS-5PWS INCLUDES

Transmitter x 1 sizes 50x75x20 mm. Color: gray included a battery 12V 1 piece.
Receiver controller x 1 dimensions 107x158x35 mm.Color: gray built-in pierzo siren included a battery 9 V 1 piece.
Remote control 4 button x 1.Color: black included a battery 12V 1 piece.
Magnetic switch contact NO.type x 3 pairs.
Adaptor 220 V AC- 12V DC x 1.
Wires x 3 pairs and glue tape x 2.
comes with an instruction sheet with a warranty card one year limited.

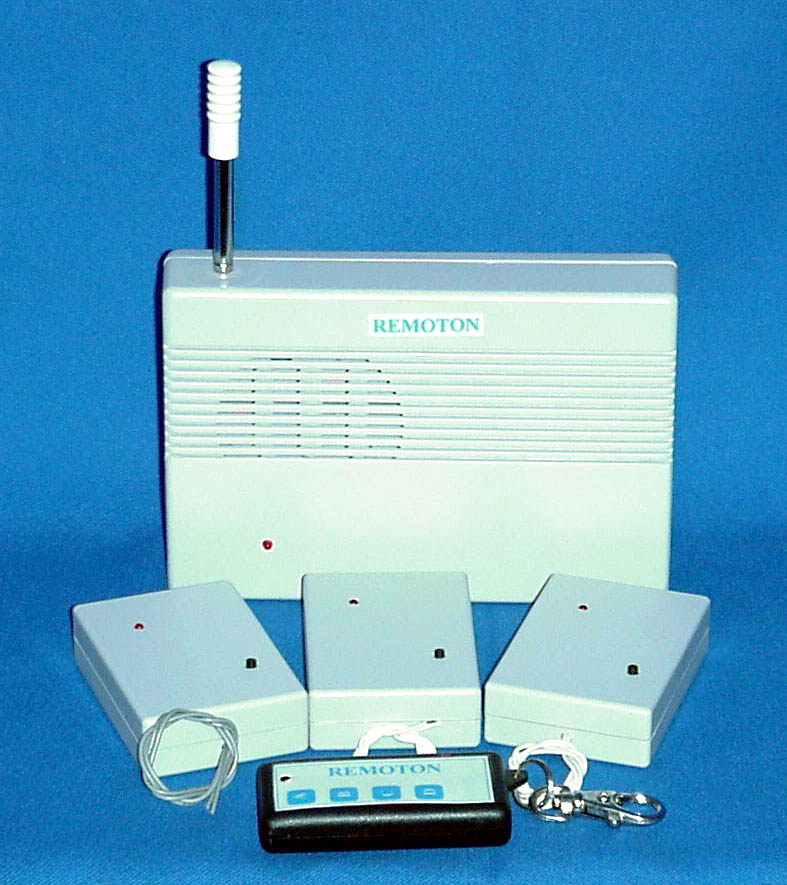

STARTER KIT 5 PIECE MODEL : WHS-5PNS INCLUDES (Excludes magnetic switch)

Transmitter x 1 sizes 50x75x20 mm. Color: gray included a battery 12V 1 piece.

Receiver controller x 1 dimensions 107x158x35 mm.Color: gray built-in pierzo siren included a battery 9 V 1 piece.

Remote control 4 button x 1.Color: black included a battery 12V 1 piece.

Adaptor 220 V AC- 12V DC x 1.

Wires x 3 pairs and glue tape x 2.

comes with an instruction sheet with a warranty card one year limited.

worldwide agents wanted

We reserve the right to make change without prior notice
