M V " VICTRESS "

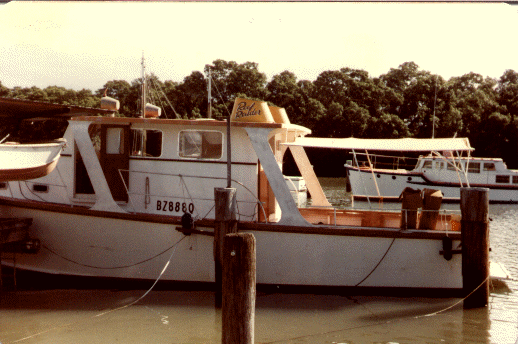

" PRE REFIT "

DETAILS

HULL:13.79 METRES

BEAM: 4.79 METRES

DRAFT: 1.45 METRES

L.O.A. 14.39 METRES

VESSEL CONSTRUCTION

All Timber Construction.

Raised Forecastle.

Hard Chine.

Marine Plywood.

Keel (Size) 250mm x 55mm hardwood

Frames 130 mm x 45 mm @ 1.1 m

Beams 100 mm x 50 mm

Stringers Side 75mm x 35mm (3 per side)

Deck Shelf 140mm x 25mm

Bottom 100mm x 40mm (4 per side)

Chine 140mm x 40mm

Hull 25mm Marine Ply

Deck 12mm Marine Ply

Bulkheads: (4) Structural Virtually Watertight

SUPERSTRUCTURE

Timber and Marine Plywood (Dynal Sheathed)

Windows: Sliding Aluminium Framed Safety Glass

Fuel: 2000 litres in one steel tank with 12mm high pressure hose

Fuel: 2000 litres in two alumiinium tanks with 25 mm high pressure hose.

Water: 900 litres in one fibreglass tank.

Steering: Wooden Wheel, Rod and chain to gearbox and tiller

Rudder: Bronze with arms

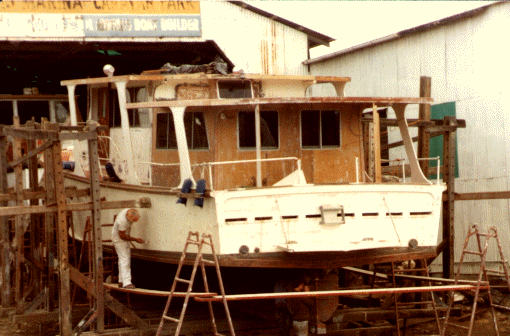

" DURING REFIT "

PUMPS

Bilge: 2 x Electric Pumps, float switch activated.Hand Bilge: Patay D-120, Engine Room

MOORING EQUIPMENT

"Ropes and Knots "

(1) 27kg stainless steel plough anchor.

(1) 114 metres of 12mm stainless steel S.L chain cable.

(2)danforth anchors. (1) 52 metres of 30mm tow rope. (1) 130 metres of 50m anchor rope.

"Maxwell Winch "

Sampson Post and 4 alloy bollards.

ACCESSORIES

"JABSCO " electric self priming fresh water pressure pump. 1 Jabsco electric self priming salt water pressure pump, 2 VHF/HF Whip aerials, 2 (1)TMC Electric (1)Brydon Boy Marine, 3 Stainless Steel sinks and hot water taps, 2 FRP Freezer Boxes (Eutectic Fridge & Freezer), 1 LPG four Burner gas stove griller & oven, 1 Microwave/Convection oven “Panasonic”, 1 Electric and Heat exchanger hot water system, 1 320 litres electric freezer, 1 Built in stainless steel Eutectic Refrigerator, 1 FRP Putdoor Eutectic Fridge, 2 27kg gas bottle, 1 Digital clock radio, 5 VDO Engine Instruments, 1 Gas alarm, 1 Indicator panel (dash), 2 Stainless steel cowl vents, 3 Colour Televisions (1/Digital with DVD)(1 with VCR , 1 Forlays liquor dispenser, 1 Marine clear view screen, 1 Stainless steel and beach duckboard, 2 Translucent watertight hatches over forward cabins, 1 Binoculars, 1 Hand held 27mhz radio, 1 Cellular phone, 1 Hand held TMQ auto pilot,

Refrigeration/Machinery

1 Lovelock sealed unit

1 Kelvinator sealed unit

Other Equipment

Sumlog B&G 921, AWA Wind Direction Indicator, Kenwood PLL Synthesiser Radio/Cassette, Kenwood Graphics Equaliser, Rudder Indicator, JRC NVA 410 Marine Loud Hailer, Brass Ships Bell, Barometers & Clocks,

Fire Fighting Equipment

Halon fixed fire Smothering System in the engine room. (4) D C P Fire Extinguisher (1) Electric centrifugal pump

Life Saving Equipment(1)E P I R B " G.M.E " (10)Lifejackets. (2)Lifebuoys(1) V/Sheet(4)Buckets,Flares and Rockets.

Rigging

Mast: 1 x 10 metre Alloy section. Boom: 1 x 5 metre Alloy section. Stranding: SS multi strand 5mm & 6mm wire. Sails: 1 x Main. 1 x Headsail with furler system. Winches: Sheet and Halyard system,including ropes.

DINGHY / OUTBOARD

3. 8 metre “Savage Snipe”Aluminium Runabout.

"MERCURY 25HP" S/SHAFT Outboard,Lifting Points,All safety gear,Dinghy Stowed on the Aft Deckhead and has the facilities for launching and retrieval by means of an electric"Superwinch " fitted to stainless steel davit.
