| This is the Small Parts Kit. |
|
| This is the Bearing and Gasket Kit |
 |
| This is what you get in the Advance Adapters Conversion Kit. This picture also includes the new pilot bushing, the new output bearing, and the new output bearing retainer. |
 |
| Here is the NP435 tranny. I tried to clean it, then thought, what for? |
 |
| Here is the NP435 with the top removed. The input shaft bearing retainer, and input shaft have been removed. The front of the output shaft slides into the end of the input shaft. So once you pull the input shaft off, the front of the output shaft is free, and can be seen in the picture. (RED arrow) |
 |

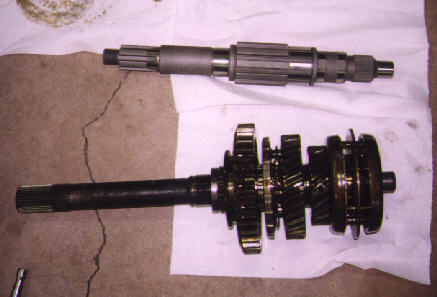

| The top shaft is the new shaft from A.A. The bottom is the shaft from the NP435. You can see the differences in the length and output end of the shaft (to the left) |
 |

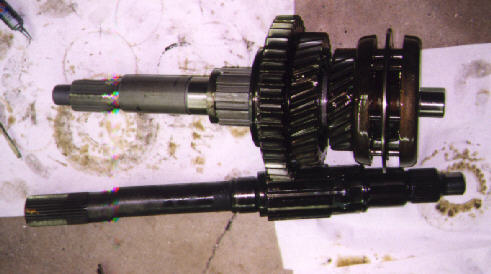

| This is the new shaft with the gears transplanted onto it. No special tools are required, but a snap ring tool would have been handy. |
 |
| This is the input shaft bearing retainer on the left, and the input shaft on the right. |
 |
