My Snow Plow
This page was created in response for all of you guys who wrote in asking about my snow plow and how I built it for under $20. While not perfect in every way, it sure beats shoveling the snow by hand!
Disclaimer: Understand by reading this page that this is only a picture guide of what you can build and nothing more. I do not have this idea patented nor do I intend to. There seems to be some real liability issues in this country and I do not wish to become another example So if (you) attempt to build this and you hurt yourself in any way, its your own fault. LAWSUITS...BAD!

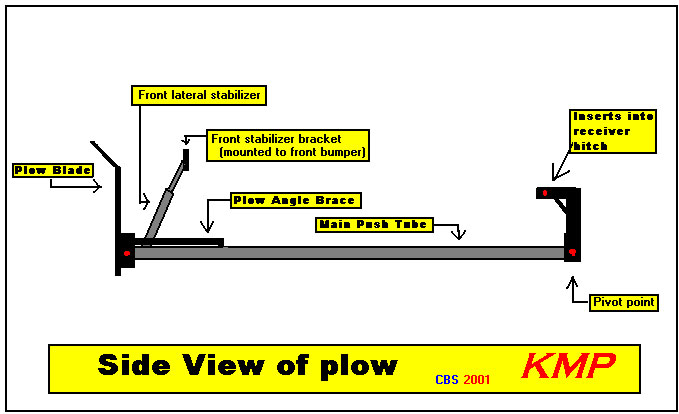

I'm not going to give you step by step instructions on assembly because I'm not an engineer. However, I will show you a schematic and that should explain alot to those of you interested.
All measurements are exact.
- 47.5" blade width
- 22" blade height
- 88" mount length
- 82 lbs. (total weight)
Materials list
- 15"X47" 3/16 plate
- 7"X47" 1/8 plate
- 10' 2" square tubing
- 47" 1"X¼ channel
- 2' 1¼X1/8 square tubing
- 2' 1½X1/8 square tubing
- 1' 1½X¼ angle iron
- 16' 1½X1/8 angle iron
- 3' 2"x¼ angle iron
