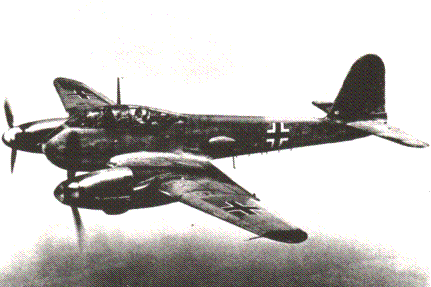

Messerschmitt Me 410 HORNISSE

Type:Messerschmitt Me 410A-1/U2 is a two seater heavy Fighter.

Engines:two 1,850-hp (1,380-kW) Daimler-Benz DB 603A inline piston engines.

Performance:maximum speed 373 mph (600 km/h) at 26,245 ft (8,000 m); climb to 21,980 ft (6,700 m) in 10 minutes 42 seconds; service ceiling 32,810 ft (10,000 m); range 1,050 miles (1,690 km).

Weights:empty 16,574 lb (7,518 kg); maximum take-off 21,276 lb (9,690 km).

Armament:four 20-mm fixed cannon and two 0.312-in (7.92-mm) fixed machine guns, and two 0.51-in (13-mm) machine guns in two lateral barbettes.

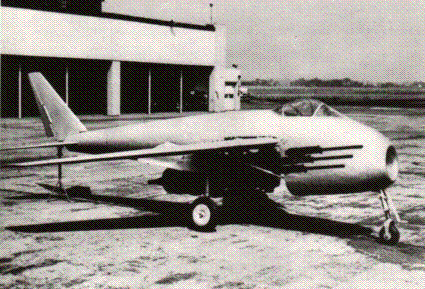

Messerschmitt P.1011

Type:Messerschmitt P.1011 is a single seat Fighter.

Engine:one 1,984-lb (900-kg) thrust Junkers Jumo 109-004B turbojet.

Performance:maximum speed 609 mph (981 km/h) at 22,965 ft (7,000 m); initial climb rate 4,380 ft (1,335 m) per minute; service ceiling 45,275 ft (13,800 m); range 932 miles (1,500 km).

Weights:empty 5,733 lb (2,600 kg); maximum take-off 8,974 lb (4,070 kg).

Armament:two or four 30-mm cannon.

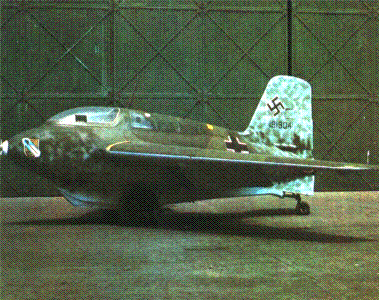

Messerschmitt Me 163 KOMET

Type:Messerschmitt Me 163B-Ia KOMET is a singl seat Fighter.

Engine:one 3,750-lb (1,700-kg) thrust Walter HWK 509A-2 rocket.

Performance:maximum speed 596 mph (960 km/h) at 32,810 ft (10,000 m);climb to 29,855 ft (9,100 m) in 2 minutes and 36 seconds; service ceiling 39,700 ft (12,100 m); powered endurance 7 minutes 30 seconds.

Weights:empty 4,189 lb (1,900 kg); maximum take-off 9,498 lb (4,300 kg).

Armament:two 30-mm cannons.
