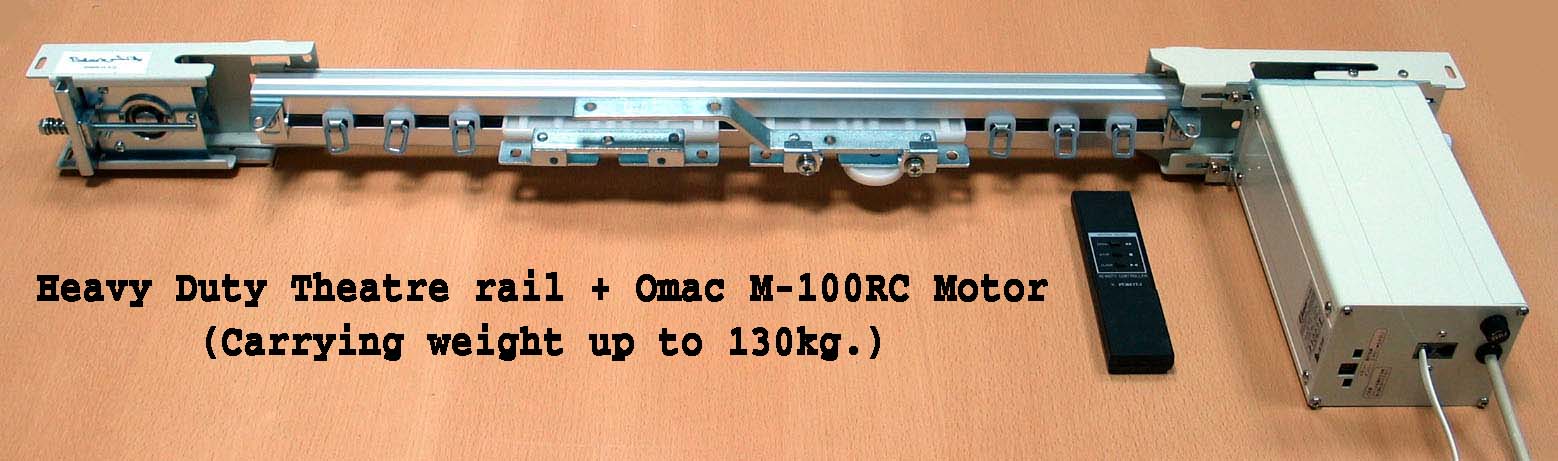

* Belatex Omac M-100RC Motor...
designed for the direct used with our Belatex Heavy Duty Theatre Rail*









Omac M-100RC Motor Specifications:

   Voltage ----------------------------- AC110v + 220 w/ adapter
   Current ---------------------------- 1.1A
   Set Torque (kg.cm) ------------ 22/50Hz.19/60Hz
   Consumption Wattage -------- 90W
   Speed (m/min) ------------------ 15/50Hz.18/60Hz
   Continous Operation ---------- 8 min
   Motor Weight -------------------- 2.6kg
   Thermal Protection ------------- 85± 5°celsius

   POWER CORD SUPPLY
   Standard Type -------------------- 1m
   Continous Type ------------------ 1m
