* Belatex Omac M-80RC Motor...

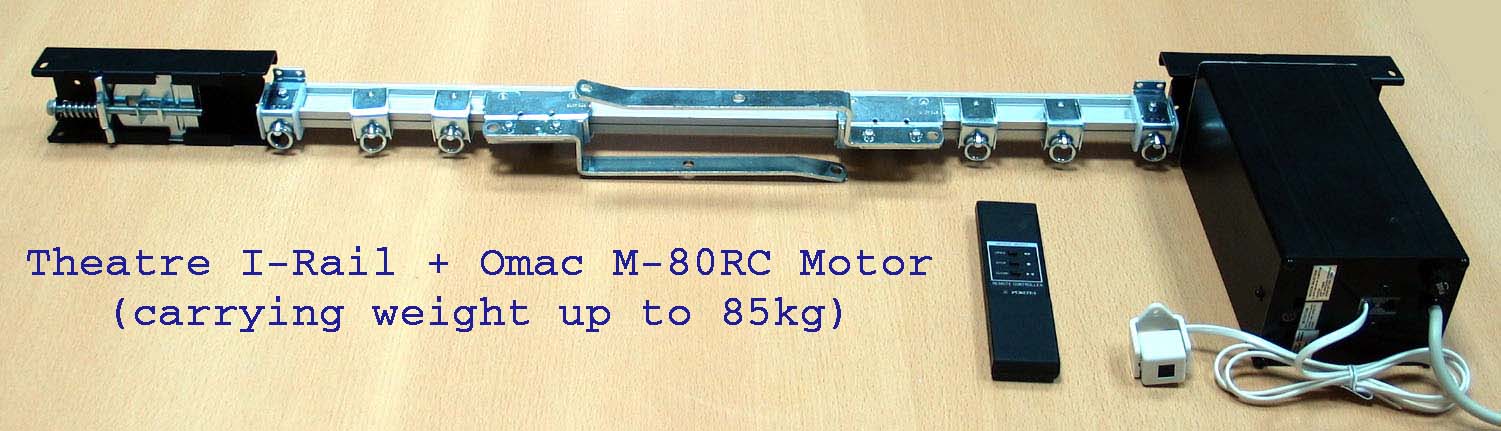

This motor works perfectly with Belatex Theatre I-Rail for weighty fabrics and
heavy drapes, for theatres or big halls or gymnasiums.*









Omac M-80RC Motor Specifications:

     Voltage ----------------------------- AC220V
     Current ---------------------------- 1.3A
     Set Torque (kg.cm) ------------ 20.2/50Hz . 18/60Hz
     Consumption Wattage -------- 100W
     Speed (m/min) ------------------ 15/50Hz . 18/60Hz
     Continous Operation ---------- 5 min
     Motor Weight -------------------- 2.6kg
     Thermal Protection ------------- 85ą 5°celsius

     POWER CORD SUPPLY
     Standard Type -------------------- 3m
     Continous Type ------------------ 1m
