Belatex Omac M-30RC Clutch Motor...

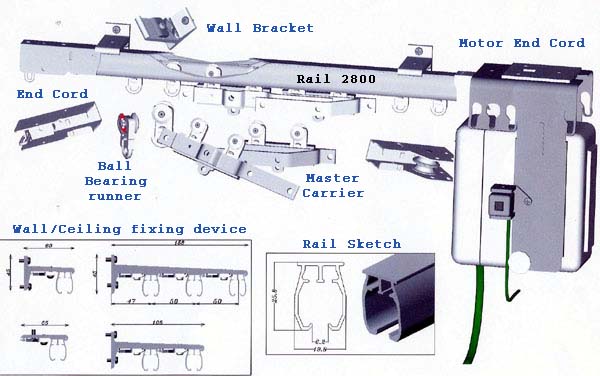

This motor works perfectly in two types of Belatex rails:
A.) Rail 2400 carrying weight up to 32kg.
B.) Rail 2800 carrying weight up to 30kg.









Omac M-30RC Clutch Motor Specifications:

     Voltage ----------------------------- AC220V
     Current ---------------------------- 0.5A
     Set Torque (kg.cm) ------------ 5.4/50Hz . 5.2/60Hz
     Consumption Wattage -------- 55W
     Speed (m/min) ------------------ 14/50Hz - 17/60Hz
     Continous Operation ---------- 5 min
     Thermal Protection ------------- 85ą 5°celsius
