Alternator calculations
A Word About Voltage regulators
How to Test the Ignition Module
Want to Test the Ignition Trigger Can?
Charging System Diagram

Alternator Calculations
or
How Long Will My Bike Run With All the Stuff I've Got On It

There is often concern over the capability of the charging system on the BMW twins. The alternators on all but the earlier twins (70's) are rated at 280 watts. This means that the maximum current available from these units is about 20 amps at 14 volts. If any more current is drawn from them the voltage will drop to less than 14 volts resulting in their inability to keep the battery charged. Furthermore this maximum output is only delivered at fairly high rpm (about 3500) due to the fact that the alternator rotor is connected directly to the crankshaft (rather that driven via a belt as on a car engine with a gearing up in rpm of at least 2 to 1).

In calculating how many accessories may be added to your bike it is not sufficient to simply assume that 280 watts is available. If most of your driving is around town with frequent stops at intersections and stop lights then you must take into account the time when the alternator is supplying no power and all power is being supplied from the battery. It is surprising when driving around a city how little time is spent running at 3000 rpm vs. spent sitting at traffic lights.

Let us try a couple of examples. In these examples we will be referring to the current used not the wattage.
Simple math: watts = volts x amps, so a 55 watt headlamp at 14 volts = 3.9 amps. The bike will draw about 40 watts for the ignition (ie. 2.9 amps). Add this to the power for the dipped headlights and the rear and you get 2.9 + 3.9 + 0.4 = 7.2 amps.

A fully charged 20 amp hour battery could therefore run this system without charging for about 2.8 hours (20 amp hours divided by 7.2 amps = 2.78 hours). So if you find yourself away from home with a dead charging system your bike could probably run for a little over 2 hours assuming no other accessories were installed. This also assumes you don't use the brake too much as it draws about 2 amps or the turn signals at about 2.5 amps. And avoid using the starter.

If you disconnect the headlamp and tail lamp however you could probably run for over 6 hours (20 amp hours divided by 2.9 amps = 6.9 hours).

So far so good......
Now assume you are riding around town with a good charging system. When a battery is being charged it takes about 1.5 amps (this depends to an extent on the cutout voltage of the voltage regulator in your bike and the temperature). If you stop at a light for 5 minutes you will draw 7.2 amps from the battery to keep the engine running with the lights on. Remember that at idle the alternator does not put out any power to charge the battery. As you ride to the next light (at 3000+ rpm) the battery will charge but at only 1.5 amps. So you must ride for 7.2 divided by 1.5 times the minutes you were at the light (5) to recharge the battery to where it was before the stop. This turns out to be 24 minutes. Pretty nasty huh???!!

With extra lights and a heated vest this problem gets even worse. It's time to do your own math...

A Word About Voltage Regulators

The higher the voltage across the battery the faster it will charge. There is a top limit of about 14.5 volts beyond which the battery can become damaged from overheating (the exact voltage depends on temperature, state of charge etc). Many BMW twins are fitted with voltage regulators set at 13.8 or 14.0 volts. Our fixed voltage regulators (often called high output regulators) are set at 14.3 volts which will result in faster charging thereby 'topping the battery up' faster between those stop lights. At the price this is a good addition to your system if you don't have already.

Our variable voltage regulators can be set to almost any voltage to fine tune the system, but be warned that too high a voltage can cause damage to the battery and other electrical components.

And bear in mind that the voltage regulator cannot put out any more power than the maximum wattage rating of the alternator.

How to Test the Ignition Module

The ignition system of a bike equipped with electronic ignition consists if three major parts: the coil, the ignition trigger (can), and the ignition control unit (often called the ignition amplifier). The coil is usually easy to test, but verifying whether the trigger or the control unit has failed can be a bit more tricky.

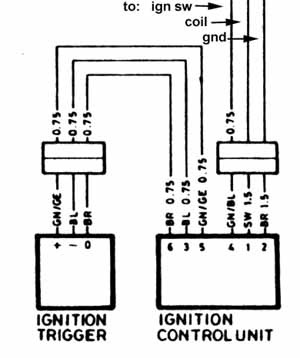

Referring to the extract from a wiring diagram one can see that three wires go from the control unit to the ignition module. Two are positive (power - pin 5) and negative (ground - pin 3) power, the third being the trigger wire (pin 6). Each time the trigger goes to ground a spark should be generated in the coil.

Testing the control unit therefore should be as simple as powering the unit up and grounding the trigger wire.

The procedure is as follows:

1) Unplug the connector that connects the harness from the trigger unit to the harness from the control unit. Be careful as there is a small wire spring clip holding the connector together.

2) Remove one plug from the engine, reconnect the ignition wire and lay it on the cylinder such that the plug body is grounded and you can see the spark gap.

3) Stick a pin or fine wire into the center connector of the connector coming from the control unit (the one unplugged in step 1).

4) With the ignition switched on, momentarily ground the pin/wire coming from the center connector. Each time you do this you should get a spark at the spark plug. This will indicate that the control unit is operational.

Do remember however that it is not unheard of for the amplifier (or any other piece of electronics for that matter), to operate perfectly when cold and fail when warm/hot.

The above is copied from a full wiring diagram. Although not drawn in the diagram, the trigger wire (to pin 6 of the unit) really is the center connector..

Want to Test the Ignition Trigger Can??

This takes a bit more electrical equipment and knowledge but here goes.........

The ignition can contains a Hall effect sensor, a magnet, and a slotted metal cylinder which rotates between the magnet and the sensor. This causes a voltage on the output pin to vary thereby triggering the input pin of the ignition control unit.

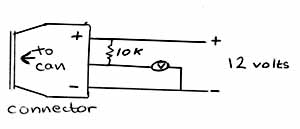

Note the diagram showing how to wire the connector for testing. The unit is powered from a 9 to 12 volt power supply (battery), and the output from the sensor (center pin) is pulled high through a 10 kilohm resistor. As the shaft on the cannister is rotated, voltage from the center output pin will fluctuate between a few millivolts and V+ (9 to12 volts).

If this makes sense to you, go for it. If it doesn't then it might be wise not to invite trouble.

And remember that this will not show up intermittent or heat related faults.

Good luck

Simple (but accurate) Diagram of Boxer Charging System

This diagram should give you all you need to diagnose most basic charging system problems.

Referring to the diagram:

With the ignition on (switch closed) and the engine off current flows from the battery, through the charge light, the voltage regulator and the rotor to ground. If the rotor is open, or the brushes worn out, curent will not flow and the charge light will not illuminate.

With the engine on and the engine running fast enough for the alternator to produce power, voltage is produced at both the D+ and B+ terminals. Both voltages should be about equal. Because they are equal, no current will flow through the charge light, and the lamp will not illuminate. If the rpm drops, the alternator will not produce sufficient voltage, and the output at D+ will be less than the 12 volts produced by the battery and the charge lamp will again illuminate. Because the voltages at the D+ and B+ terminals are equal the voltage at B+ is also below the battery voltage, therefore when the charge lamp is not illuminated the voltage is too low to charge the battery.

As the RPM increases the voltage at D+ and B+ increases. When it reaches a defined voltage the voltage regulator will cut power to the rotor.

From this you can understand the common test for the voltage regulator. Remove the regulator, and short the DF and D+ terminals in the plug. With a voltmeter across the battery, does the voltage increase to 14.5 volts and more as the RPM's are increased? (Stop at 15 volts as damage can result). This test works because the voltage regulator is out of the circuit - remember that the voltage regulator is really a voltage limiter.
