2. Remove clock hole cover plate, cover plate
support and discard.

3. Mount instrument panel clock housing and
clock housing support furnished in package
and secure to instrument panel with nuts

and washers previously removed, in addition
to nut and lockwasherfurnished in package.
4. Install clock in housing, making sure the
spring clips on the sides of the clock are
aligned with the slots in the housing and the
face of the clock is right-side up.

5. Assemble wires in clips on back of instru
ment panel and connect the dial light lead
to the instrument light terminal on the light
switch (see figure 7) and the clock power
lead to the lower center terminal on the
battery side of the accessory junction block,
(see figure 8).

Approximate Flat Rate Time .3 of an hour.

986525 SPRING WIND CLOCK

Procedure for Installing Spring Wind Clock
on Special Model Passenger Cars.

1. From inside upper portion of instrument
panel, remove nuts and washers from the'
two studs of the instrument panel clock hole
cover plate assembly. (Save two nuts and
washers for reassembling.)

2. Remove instrument panel clock hole cover
plate support and instrument panel clock
hole cover plate assembly and discard.

3. Install instrument panel clock housing and
clock housing support on instrument panel,
using the two removed nuts and washers
plus the nut and washer furnished in the
package. (See figure 7.)

4.   Place clock dial light wire attached to back
of clock through hole in housing and assem
ble clock into instrument panel housing mak
ing sure that the spring clips on sides of
clock are aligned with slots in the housing

and the clock face is right side up. (See
figure 7.)

5. Install dial light wire in clips on back of
instrument panel (see figure 7) and attach
the terminal of dial light lead to instrument
light terminal of light switch, (see figure 7).

Approximate Flat Rate Time .2 of an hour.

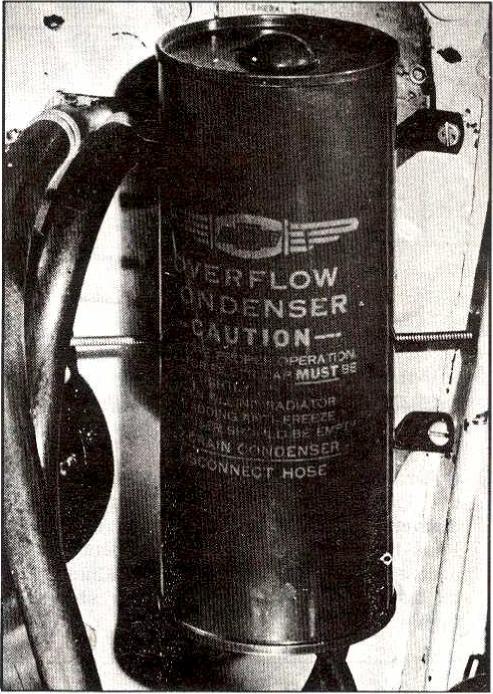

986282 RADIATOR OVERFLOW CONDENSER

Procedure for Installation of

Radiator Overflow Condenser
on All Model Passenger Cars and Trucks

Figure 10

-- C-C
