PASSENGER CAR

1.   Locate four mounting holes in dash or right
hand engine side of dash and drill holes as
shown in figure 10. Install overflow condens
er unit with pipes at bottom, using screws
furnished.

Figure 14

2. Connect twenty inch length of small diam
eter overflow hose to center pipe on bottom
of condenser unit.

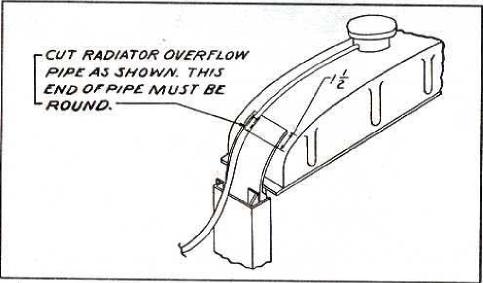

3.    Cut radiator overflow pipe as 'shown in fig
ure 11 and connect six foot length of large
diameter hose to radiator overflow pipe,
Pass hose around battery, then between air
duct and skirt and attach to retraining pipe
on bottom of condenser unit as shown in
figure 10.

Figure 12

TRUCK

1. Locate four mounting holes on right-hand
engine side of dash and drill holes as shown
in Figure 13. Install overflow condenser
unit with pipes at bottom, using screws fur
nished.

Figure 11

4. If radiator pressure cap is used remove
and insert upper gasket in cap as shown in
figure 12.

Figure 13

2. Connect twenty inch length of small diam
eter hose to center pipe on condenser unit.

3.   Attach six foot length of large diameter hose
to bottom of radiator overflow pipe being
sure pipe is round. Lay hose on lower edge
of side member and attach to remaining pipe
on condenser unit.

NOTE: He sure that radiator cap and all
other cooling system connections are tight.
BE SURE THAT HOSE IS NOT KINKED,

Approximate Flat Rate Time .2 of an hour.
