Approximate Flat Rate Time .2 of an hour.   2.    Remove fitting on carburetor at "C" in fig
ure 51.

3. Install 60 degree elbow union at "C" figure

986399 GASOLINE FILTER   51. (Short end in carburetor.)

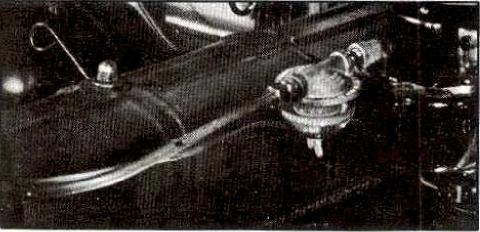

4. Assemble connector and Murex filter as
Procedure for Installation of Gasoline Filter   shown in figure 51.

on All Model Passenger Cars and Trucks.

5. Rebend gasoline pipe, install sleeve and in
sert end of pipe to the full depth of connec
tor. Tighten sleeve as necessary to insure
an absolute seal.

6. Reinstall clip on gasoline pipes at "D" in
figure 51,

7.   Start engine and check installation for leaks.
NOTE: If optional vacuum booster pump
equipment is installed on engine, rebend

Figure 50   vacuum pipe line and strap to gasoline pipe
as shown in figure 51.

1.   Remove metal clip around gasoline pipe and

cut gasoline pipe as shown in figure 51.   Approximate Flat Rate Time .3 of an hour.
