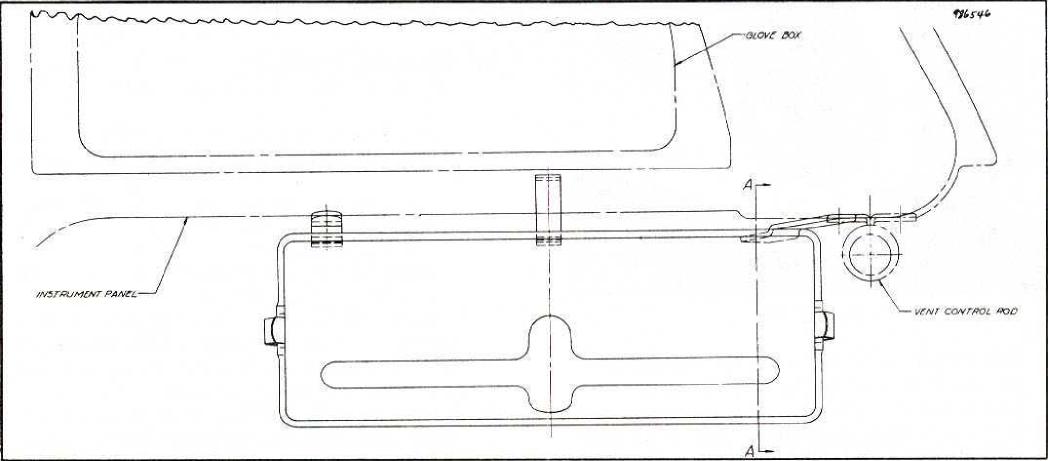

4. Move
and align dispenser so that it appears
in position as shown in figure 48.
5.
With left-hand bracket of tissue dispenser
as a template drill 16'7/169 diameter hole
in lower flange of instrument panel.
6.
Fasten left-hand bracket with screw fur
nished.
7.
With tissue dispenser mounted proceed un
derneath to center support bracket of tissue
dispenser, (see figure 49).
8.
Using hole in center support bracket as a
guide take a sharp object and pierce through
cardboard of glove box.
9. Place
='[F" type anchor nut over end of cen
ter support bracket. Make sure anchor nut
is aligned with hole in bracket, (figure 49).
1.0.
Open glove box door and take screw and
plain washer furnished and put through hole
that was pierced through cardboard of glove
box.
11.
After making sure screw is aligned to go
into anchor nut mounted on center support
bracket of tissue dispenser, take a short
screw driver and tighten securely from in
side of glove box, (figure 49).
