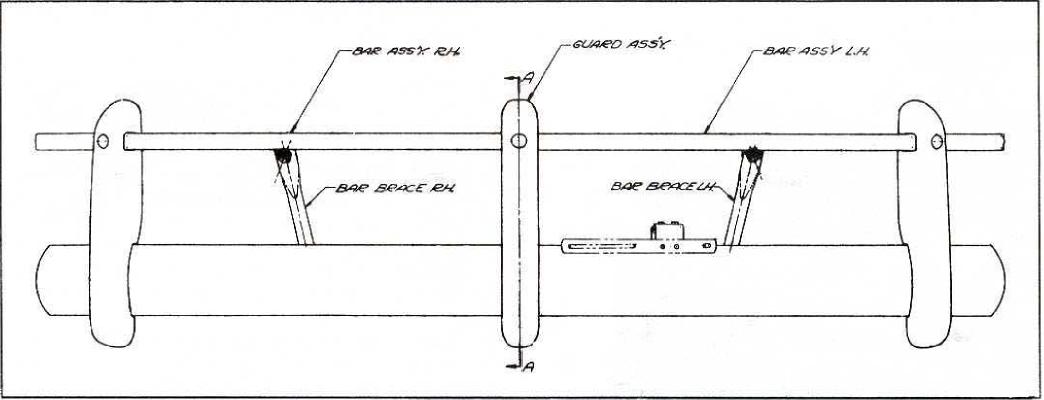

in section AA, figure 60, and tighten secure
ly.

4.   Remove the two front bumper arm bolts and
nuts at the front of the frame horn and as
semble the bar braces through the 1-3/4
inch holes in filler panel. Attach bar braces
to frame horn with bolts furnished, using
nuts and washers which were removed pre
viously, as shown in figure 61. Attach bar
braces to grille guard bar assembly with
bolts, nuts and washers furnished as shown
in section BB, figure 60. Insert rubber
grommets in filler panel and tighten all halts
and nuts securely_

5. Remove license bracket from right side of

filler panel and measure from left side of
center upright bumper guard 9-1/8 inches
to the left. Center bracket and drill two
9/32 inch holes and attach bracket and li
cense holder as shown in section CC, figure
60.

Approximate Flat Rate Time 1 hour.

986536 RADIATOR GRILLE GUARD - TRUCK

Procedure for Installation of Radiator Grille
Guard on 4000-5000-6000 Model Trucks.
