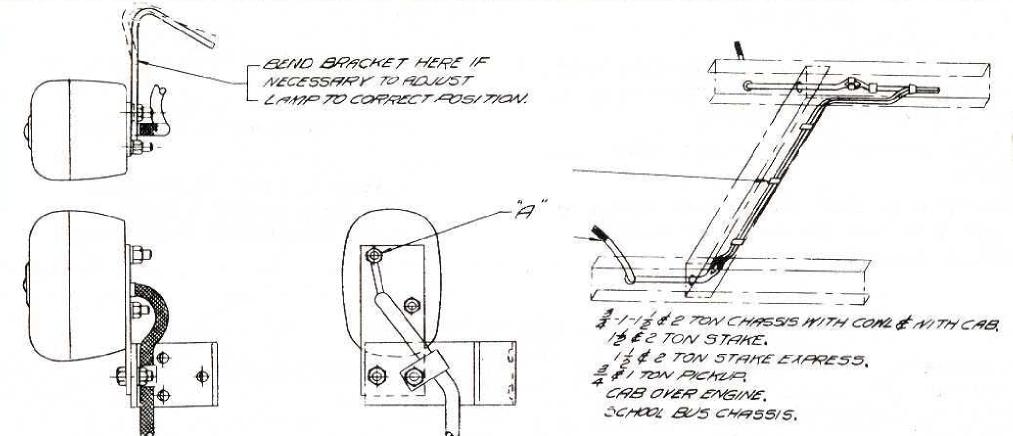

1.   Mount lamp with tail and stop lamp bulbs in
same position as left-hand tail lamp.

2. Natural color wire to stop lamp bulb.
3.   Natural color with black tracer to tail lamp
bulb.

4.   On 3/4 ton stake, a ground wire is required.
Use a length of excess wire cut from wires
on tail lamp. Strip end and fasten under
lamp attaching nut at "A." Run wire through
loom and ground at any convenient point.

Approximate Flat Rate Time .3 of an hour.

Figure 131

Figure 133

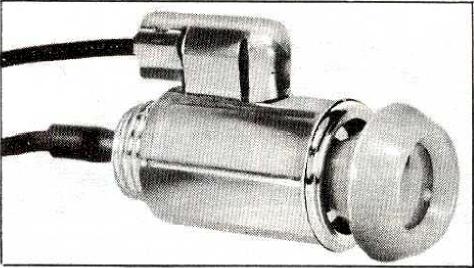

986488 CIGARETTE LIGHTER AND
CIGARETTE LAMP
