NOTE:
Pin as close to door weather seal
as possible to conceal the wire.
4. Place
wire between end of instrument panel
and pillar trim as shown in figure 147.
5.
Place wire into rolled flange along rear
edge of instrument panel and into clips pro
vided. Attach ground wire under clip attach
ing bolt.
6.
Attach fuse holder to open terminal of Ac
cessories Junction Block. Tape mirror wire
to wiring harness as shown in figure 147.
Approximate Flat Rate Time .2 of an hour.

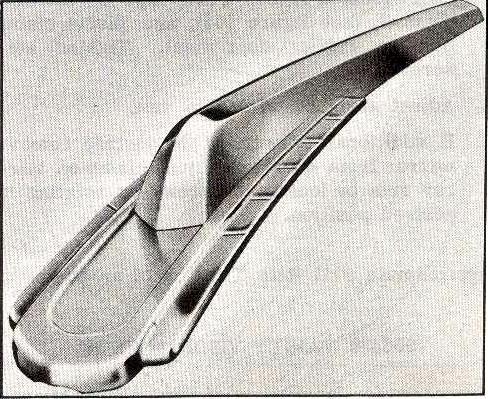

986528 HOOD ORNAMENT
Procedure
for Installation of Hood Ornament
on All Model Passenger Cars.
1.
Raise hood and remove the two nuts and
washers holding
the equipment ornament and
remove from car.
2.
Place accessory ornament into existing two
holes in hood, and replace washers, nuts and
tighten securely.
Approximate Flat Rate Time .1 of an hour.
986161 HOOD ORNAMENT - COMMERCIAL
Procedure for Installation of Hood Ornament
on 3000 Commercial Model Trucks.
Figure 149
