2.
Install rear view mirror clamp assembly
with screw previously removed from mirror
assembly, (see figure 145).
3.
With pad in place under base of mirror, in
stall mirror on top of door with center of
base located above rear edge of division
channel, (see figure 145), and insert clamp
between rubber door seal. Tighten set,
screws.
4. Adjust angle of mirror to suit.
5.
If additional adjustment is desired remove
mirror from door and adjust clamp on mir
ror arm by loosening screw and rotating to
desired position.
Figure 146
|
1. |
|
|
Approximate Flat Rate Time .2 of an hour. |
|
|
2. |
|
|
986439 VANITY VISOR MIRROR |
|
|
Procedure for Installation of Vanity Visor Mirror |
3. |
on All Model Passenger Cars.

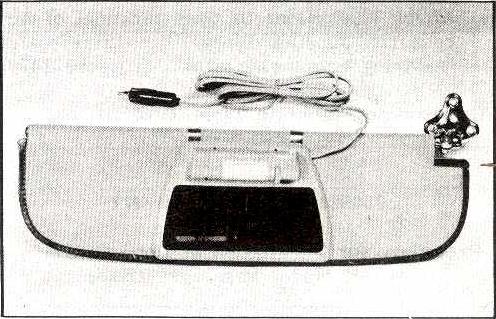

Place
the two clips on the mirror over the
right-hand sun visor and center mirror on
visor as shown in figure 147.
Wrap
wire around visor arm and bracket,
allowing sufficient wire to permit visor ad
justment as shown in figure 147.
Pin wire to pillar trim, using the three pins
provided.
61
