CAUTION: After drilling is completed, un
screw bracket from post, discard paper
Template, and clean away shavings, burrs,
etc.

Mounting Light

5.   First, Handle Unit "E" must be detached from
Lamp. Follow figure 167 closely: Loosen

locating screw "A," remove bolt "G" at
bottom of Handle "C." and remove Handle,
being careful not to lose the Spring Washer_
Remove Pinion "D" by pushing up from bot
tom side {where Handle was removed). Com
pletely remove screw "A." Handle Unit "D"
may now be detached by pulling it off shaft.
DO NOT DISMANTLE THE LAMP ANY
FURTHER.

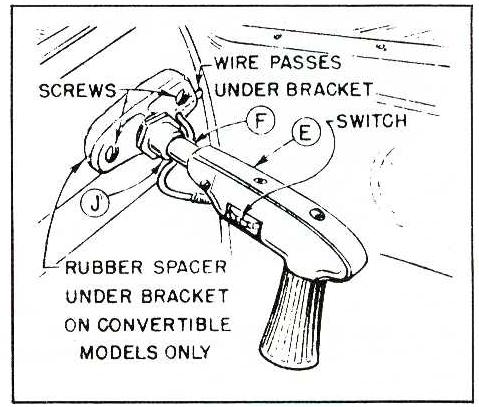

Figure 167

Figure 169

Figure 168
