5. Remove rear view mirror upper and lower
inner division moulding caps. Loosen top
and bottom cross slotted barrel nuts to re
move the inner and outer division mouldings
as shown in figure 208.

B. Pierce tab of blind hole in rubber moulding
(approximately 5-1/4 inches below top hole),
using this hole to guide the spot drilling of

a 9/32 inch hole through the inner division
frame reinforcement.

NOTE: Carefully align the drilling through
the rubber moulding to maintain the 5-l./4
inch center dimension of holes for the adapt
er assembly, as shown in figure 208.

Figure 207

7. Discard upper individual screw assembly,
slip double screw adapter and remaining
lower screw assembly into the outer mould
ing, insert the three threaded studs through
rubber (with adapter to the top), firmly fasten
the brass barrel nut to middle stud. Hold
inner moulding in place and firmly fasten
the two remaining cross slotted barrel nuts.
Replace upper and lower moulding caps and
rear view mirror as shown in figure 208.

Figure 208

8.   Position visor on car as shown in figure 205
using "A" dimension as average height on
drip moulding. "A" dimension is recommend
ed for average installations but can be varied
to suit the driver by moving visor forward
or backward on drip moulding (hold "A"
dimension equal on both sides). When po
sition has been determined pencil mark "A"
dimension on drip moulding as shown in fig
ure 209.

9. Align lower edge of right tapping plate, with

Figure 209

pencil marks on right drip moulding. Make
sure the top edge of tapping plate is flush
with top edge of drip moulding, Scribe the
three holes, center punch and drill holes
with a number 21 drill.

CAUTION: Drill through drip moulding only.
Repeat this operation for left side.

10. Clean out drip mouldings.   Place tapping
plate marked "L" inside of left moulding
and tapping plate marked "R" into right
moulding, align with holes that were drilled
in drip mouldings. To facilitate use of self
tapping screws during installation, we rec
ommend that each screw be run through the
holes in both tapping plates before mounting
the visor as shown in figure 209.

11. Place visor in position, realign all holes,
insert and firmly fasten all six tapping
screws as in figure 205.

12. Insert knife edges of center clamps between
outer division moulding and rubber_
CAUTION: Do not touch glass with center
clamps. Firmly fasten clamping screws and
nuts. Adjust center support to assure full
curvature of visor and firmly fasten adjust
ing clamp and nuts.

Approximate Flat Rate Time .9 of an hour.

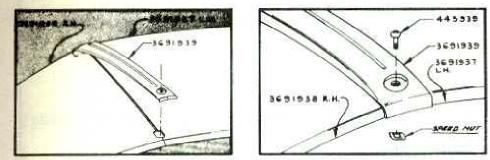

986544 RIGHT-HAND SUN VISOR

Procedure for Installation of Sun Visor
on All Model Passenger Cars.

Figure 210
