Procedure for Installation of
Traffic Viewer on All Model Passenger Cars.

1. Remove screw from windshield garnish
moulding at either of the optional locations.
2.   Put screw from windshield garnish moulding
through clevis and assemble this screw to
windshield garnish moulding at place where
it was previously removed.

3. Attach arm of Traffic Light Viewer clevis
with screw "X."(See view A-A, figure 214.)
4. To adjust traffic light viewer for proper re
sults, sit in a normal driving position and.
adjust lens until serrations are no longer
visible.

Approximate Flat Rate Time .1 of an hour.

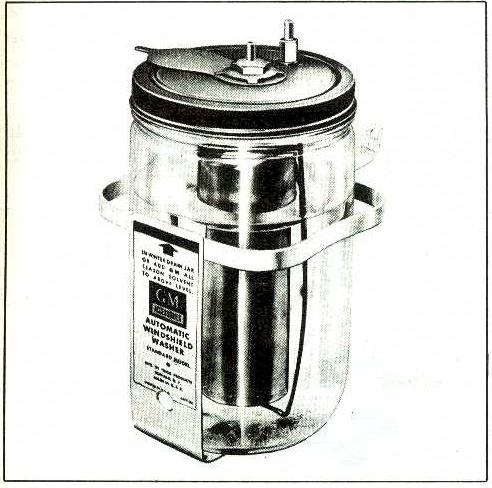

986464 WINDSHIELD WASHER

Figure 215

Figure 214

Procedure for Installation of
Windshield Washer
on All Model Passenger Cars.

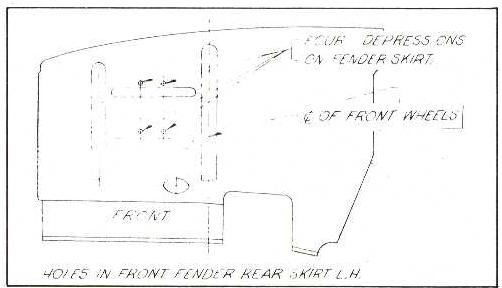

1. Locate and drill four holes on left front
fender skirt 7/32 diameter at existing four
depressions, (see figure 216).

Figure 216

2. Fasten jar bracket securely with four nuts,
lock washers, washers and screws provided,
(see figure 217).

Figure 217
