TYPICAL
SETUP FOR SCREW-CUTTING SQUARE THREADS
|
|||||||||||||||
![]() |
|||||||||||||||
DIAGRAM

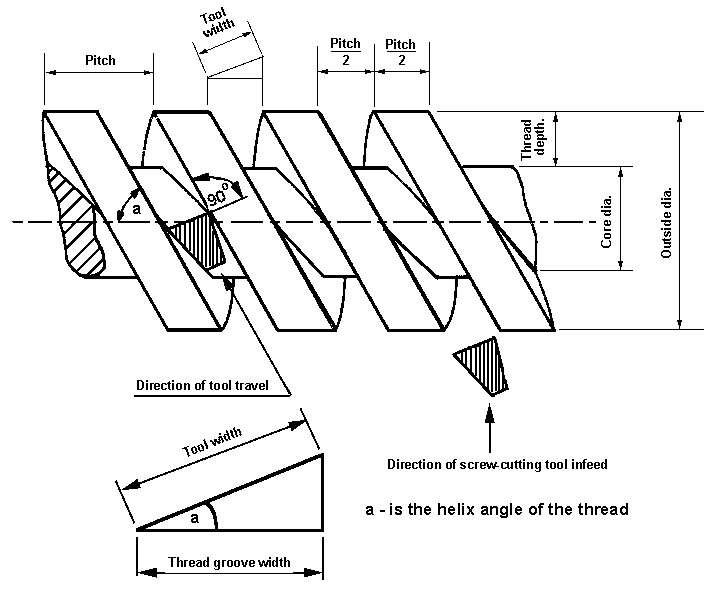

DISPLAYING THREAD AND TOOL CHARACTERISTICS
|
|||||||||||||||
Using
trigonometry to calculate:
1. The helix angle of the thread Start by understanding trigonmetric rules relative to right angle triangles: |
|||||||||||||||
![]() |
|||||||||||||||
SOH, CAH, TOA. CAH = Side adjacent TOA = Side opposite |
|||||||||||||||
