Standard Leads
There are three of these leads which are usually designated as I,
II and III.
They are all bipolar (i.e., they detect a change in electric potential
between two points) and detect an electrical potential change in
the frontal plane.
Lead I is between
the right arm and left arm electrodes, the left arm being
positive.
Lead II is between the right
arm and left leg electrodes, the left leg being positive.
Lead III is between the left
arm and left leg electrodes, the left leg again being positive.
|
|
A diagrammatic representation of these three leads is termed Einthoven's
triangle (shown in blue below), after the Dutch doctor
who first described the relationship. The central source of electrical
potential in the triangle is the heart.
EKG

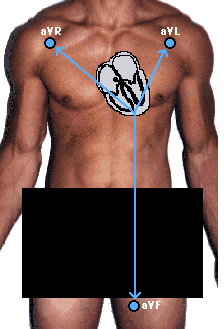

Augmented Limb Leads
The same three leads that form the standard
leads also form the three unipolar leads known as the augmented
leads.
These three leads are referred to as aVR (right arm), aVL
(left arm) and aVF (left leg) and also record a change in
electric potential in the frontal plane.
These leads are unipolar in that they measure the electric
potential at one point with respect to a null point (one which
doesn't register any significant variation in electric potential
during contraction of the heart).
|
|
This null point is obtained for each lead by adding the potential
from the other two leads. For example, in lead aVR, the electric
potential of the right arm is compared to a null point which is
obtained by adding together the potential of lead aVL and lead aVF.
EKG

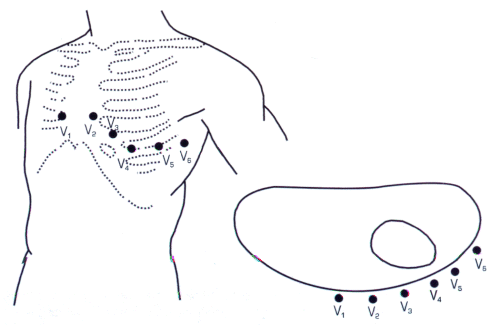

Precordial Leads
These six unipolar leads, each in a different position on the chest,
record the electric potential changes in the heart in a cross sectional
plane. Each lead records the electrical variations that occur directly
under the electrode.

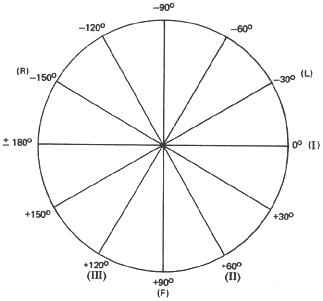

Combined Planes and Corresponding angle
|
