This page is under Construction. This site Contains pictures of The new WTTM transmitter site for the city Of Lindenwold,NJ there are lots of photos so if you have a slow Connection it will take awhile to load . This Page is of the transmitter Rack.
Placing down the ground Radial system.
Installing the Shirt(uniPole antenna.
testing the Iboc Exciter with transmitter Into Dummy load

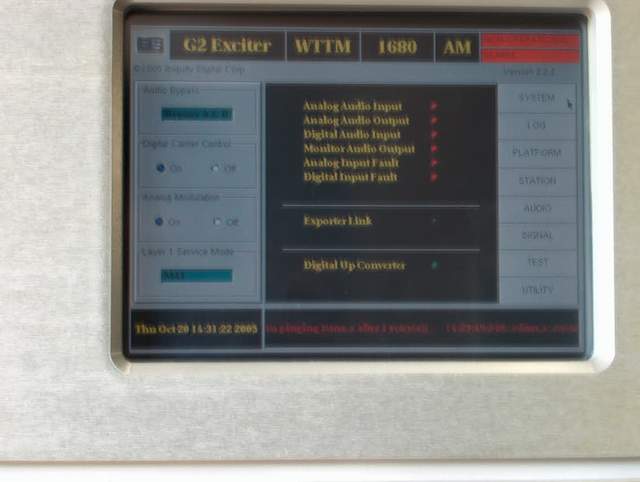

Closeup Of the BE ASI -10 Iboc exciter screen
the BE AM10D transmitter back at the shop where I powered it up into a Dummy load To test it.
I finally loaded up the rack with some gear.
Lots Of room for more gear.
Lots Of room for more gear.

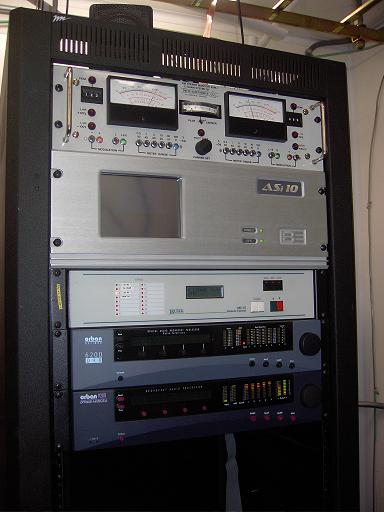

From the Top the TFT modulation Meter the BE ASI-10 IBOC Exciter Orban Digital 6200 Optimod for the IBOC Orban analog 9200 optimod for mono audio. monitor and computer for local Programming and TOH legal ID Bottom of Rack is the UPS and Batteries The Computer is running Radio T.E.D. format
Processors for Digial IBOC and Analog
EAS,AM Stereo processor 9100B and harris CQuam exciter
IBOC Exciter mounted
Your friendly Engineer
