This page is under Construction. This site Contains pictures of The new WTTM transmitter site for the city Of Lindenwold,NJ there are lots of photos so if you have a slow Connection it will take awhile to load . I will try to re-organize this page into sections.
Placing down the ground Radial system.
The Transmitter Racks.
antenna parts all laid out to Be put up in order
First of antenna brackets mounted
Preping the brackets to put up the Unipole skirt antenna
Bottom Brackets being mounted

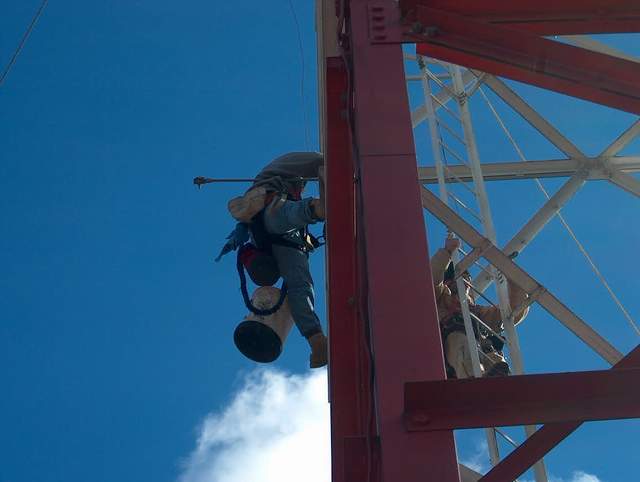

Tower crew at the 143 foot point of Tower mounting Top brackets and dropping wire
THe BE am10000D now in place in its Temporary home For a few months until the new building is delivered Notice I ran 2" strapping around the trough to Both the transmitter and the Equipment racks
Setting a stand off
dropping the wires down all 4 sides of the tower
threading the wire through a Bottom Insulator

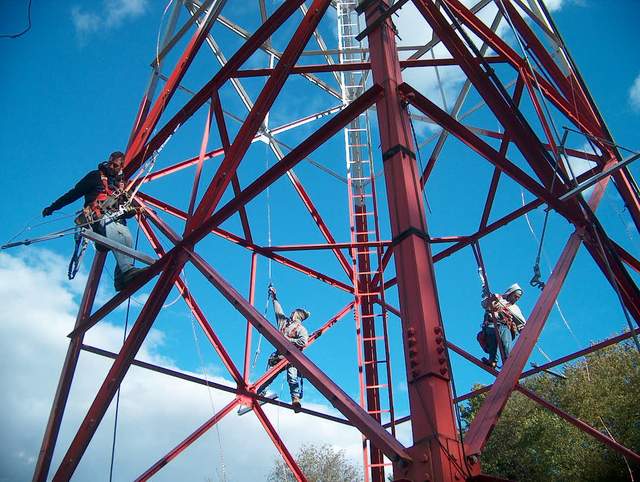

crew working on threading wire through standoffs
Feeding the wire End into the bottom insulator

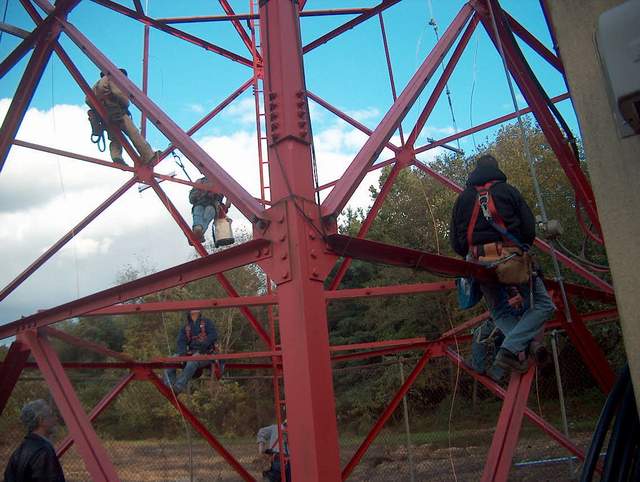

Just like a bunch of turkey vultures sitting On a Tower heres the Entire crew taking a break where Else On the Tower.

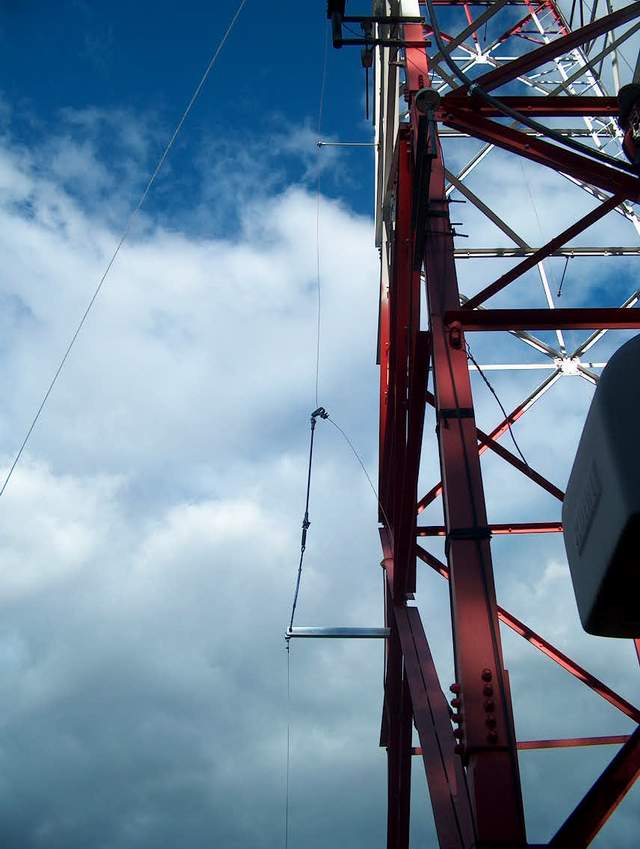

looking up at the south wire

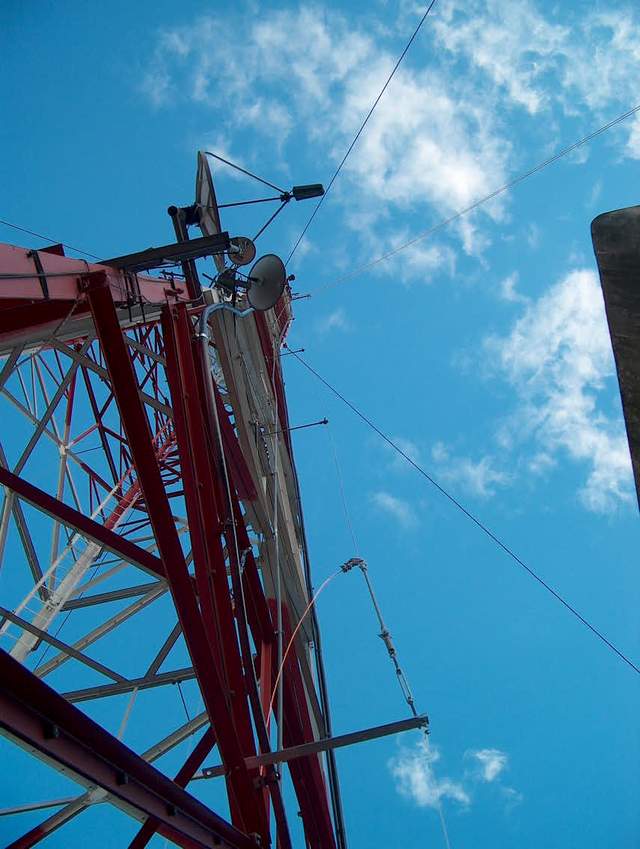

a view looking up at the Tightened wire skirt antenna this is the West wire
First wire being Brought to Center point
First 2 skirt wires Connected.. Hes just hanging around
Hooking Up the 4th skirt wire
the Center of the tower where the 4 unipole skirt wires are joined to be fed by the ATU I am building this Point is about 18 feet off the ground.
Ted From Radiotechniques getting ready to take measurments of the newly Installed Unipole.
