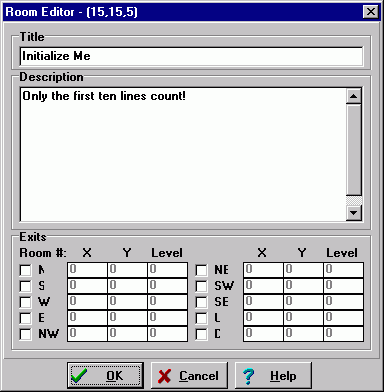

The Right Mouse Button brings up the Automap Room Editor.
Click on the part of the Automap Room Editor you would like to
learn how to use.
Title Bar
The Title Bar displays the current room number on the Automap on the
coordinate system. The <X,Y,L> coordinates are interpreted as
follows:
X |
Y |
L |
Horizontal Map Position |
Vertical Map Position |
Up/Down Map Level |
Title
MUD Mage automatically writes a MUD room's title in the Title text box.
You may change the title at any time, however.
Description
Enter the MUD room's description in this text box.
Exits
Click the checkbox to specify that an exit exists (checked) or does not
exist (not checked) North, South, West, East,
NorthWest, NorthEast,
SouthWest, SouthEast, Up, and
Down. Each enabled exit leads to another room, whose coordinates
are specified in the three number fields right of the direction.
OK Button
Click the OK button to accept changes to the current room.
Cancel Button
Click the Cancel button to abandon changes to the current room.
Help Button
Click the Help button to get this help page.
|
