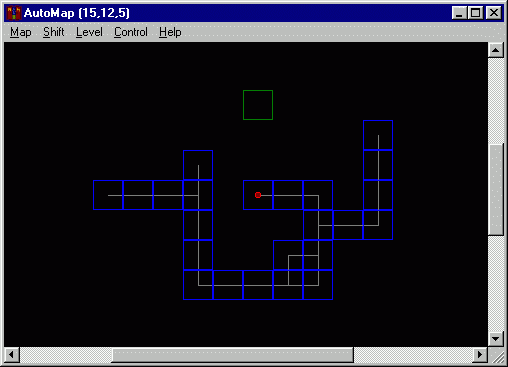

Selecting this menu item brings up the Automap.
Click on the part of the Automap you would like to learn how
to use.
Selection Coordinates
The Selection Coordinates in the title bar show the current position of
the Selection Box. The <X,Y,L> coordinates are interpreted as
follows:
| X |
Y |
L |
| Horizontal Map Position |
Vertical Map Position |
Up/Down Map Level |
Help
Select the Help menu item to get this help page.
Selection Box
The Selection Box follows the mouse cursor's movements, snapping to
possible room positions on the Automap. This box allows three mouse
functions:
|
Left Mouse Button
|
Creates a room or destroys an existing room.
|
|
Right Mouse Button
|
Edits a room's properties.
|
|
CTRL + Left Mouse Button
|
Sets the Current Position to the selected room.
|
Current Position
The Current Position refers to the correspondence between where your
character is standing in the MUD and where your character is standing in
the Automap. For example,
- Your character is standing at a room called "Market Square".
- You have visited the rooms directly to your north, south, west, and
east.
- The Automap was activated just before you explored the four rooms
around you and the one in which you are standing. It has five
rooms in the form of a cross.
- Your position at the center of the five-room cross is represented
by the red dot at the center of the five-square cross on the
Automap.
You may alter your current position on the Automap by holding down the
CTRL key and clicking with the Left Mouse Button. Sometimes this
is necessary because MUD areas are not limited to the standard rules of
physics in the real world.
Scrollbars
The scrollbars allow you to navigate around the Automap, which is much
larger than the default Automap window size.
|
