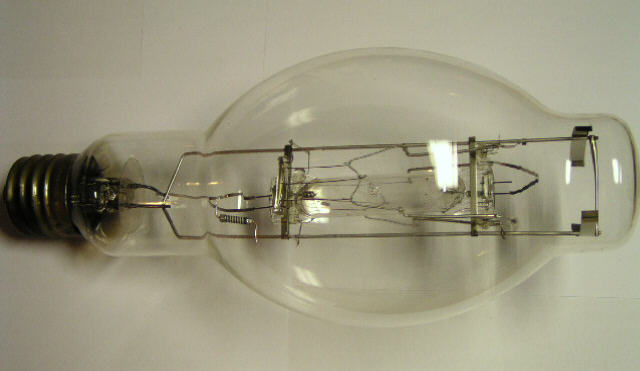

Philips 450 Watt Self Ballasted Mercury Vapor Lamp

Manfacturer: Philips Lighting Company
Lamp: Self Ballasted Mercury Vapor
Wattage: 450 watt
Starting Voltage: 230 volts
Ballast Type: No Ballast Required
Color Temperature: 4000 degrees K
CRI: 40
Light Output: 9100 Lumens
Bulb: BT-37 Hard Glass
Finish: Clear
Base: E-39s Brass Mogul Base
Class: -
Filament: -
Lamp Life: 16,000 hours
Manf. Date: March 1986
Country of Orgin: USA

Philips still manufactures this 450 watt 230 volt lamp, in phosphor coated finish only. Clear versions were discontinued in the late 1980s. Although this lamp has the Philips brand, the design is 100% Westinghouse, and it was also manufactured shortly after the Westinghouse brand was dropped. Note the arc tube support has the same basic arc tube support as other Westinghouse (and early Philips) BT shaped lamps. Like the Duro-Test 750 watt lamps shown elsewhere, this lamp also has two ballast filaments wired in series, an unusual design since most have a single continous filament. Like most Westinghouse products, this is good stuff, quality-wise and are now desirable to lamp collectors.
