ALARM. 1. Remove inspection hole cover on dash.
4. Cut
mat if necessary for clearance of spring. 2. Install
Junction Block to dash inspection hole
flange (Using the existing holes in flange)
Approximate
Flat Rate Time .2 of an hour. with screws, nuts and lockwashers
furnished,

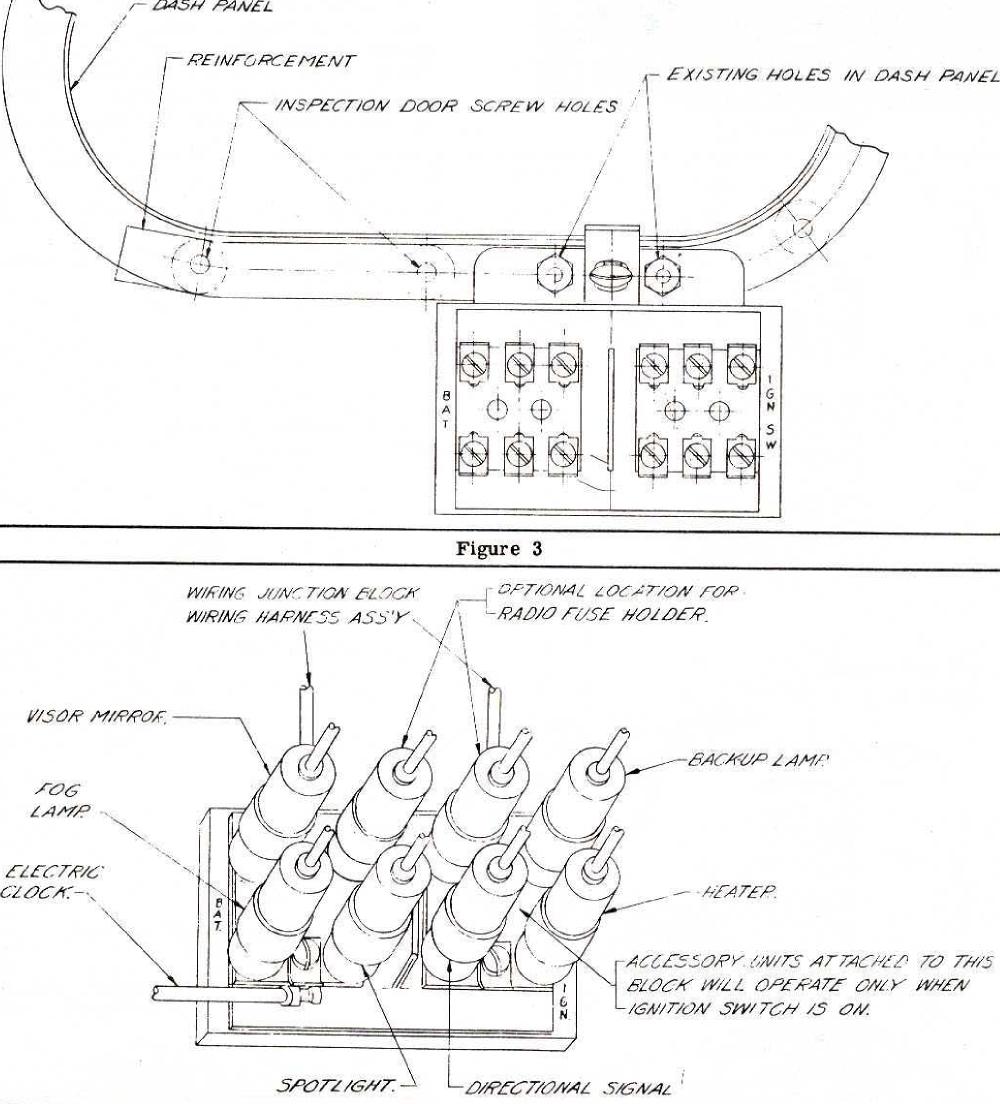

(See figure 3.)
986442
WIRING JUNCTION BLOCK 3. Route Junction Block wiring harness
as
shown in figure 5, attaching to the main
Procedure
for Installing Wiring ]unction Block wiring harness with
the wire clamps fur
on All Model Passenger Cars. nished, and connect as follows:
