Procedure
for Installation of
All Types of Seat Covers on
Four-Door Sedans.
(Fiber - Plastic - Rayon)
1.
Remove rear seat cushion and back rest
from car.
REAR SEAT BACK REST
1. On
deluxe models remove top trim rail from
back
rest. NOTE: "Special" models not
equipped with trim rail.
2.

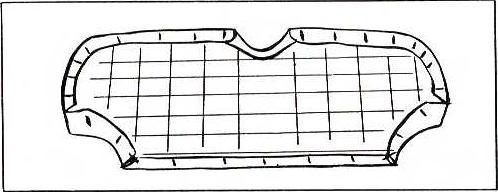

Place seat cover over back rest and line up
seams with contour of back rest and hog
ring as shown in Figure 14.
3.
On deluxe models replace trim rail and re
install back rest in car.
Figure 14
Figure 16
Figure 17
side,
cover may be torn. Line up all seams
to follow contour of back rest.
2.
Place "S" hooks in elastic tabs on front side
of back rest cover and close "S" hook on
elastic tabs with pliers as shown in Figure
is.
REAR SEAT CUSHION
1,
Place seat cover over seat cushion and line
up seams and floor tunnel "cutout," hog ring
as shown in Figure 15.
2. Replace rear seat cushion in car.
Figure 15
FRONT SEAT BACK REST
1.
Remove robe cord and ash tray as shown in
Figure 16. Place seat cover over back rest
and work down evenly about two inches on
each side at a time (THIS IS IMPORTANT),
see Figure 17. If pulled down too far on one
Figure 18
3.
Place "S" hooks in seat frame as shown in
Figure 19.
