Figure 19

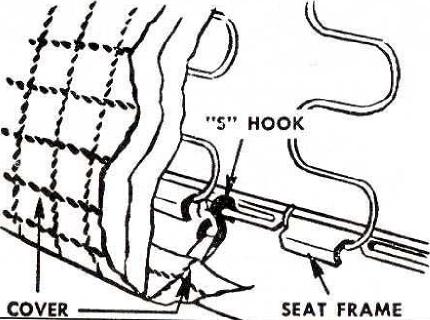

5. Cut slot in seat cower as shown in Figure
21 and replace robe cord and ash tray.

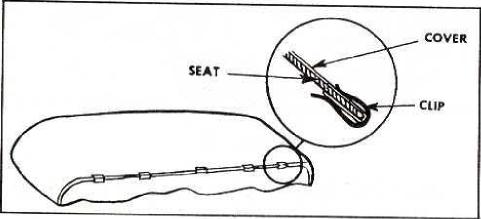

4. Place spring clips on back of back rest at
lower edge of seat as shown in Figure 20.

Figure 20

Figure 21

FRONT SEAT CUSHION

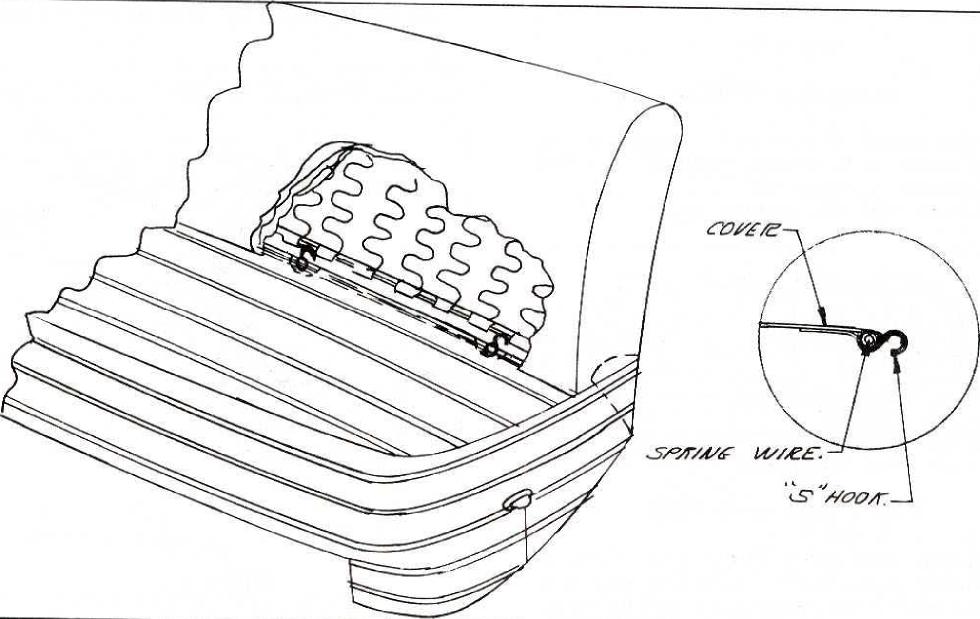

1. Place two 20 inch spring wires in seat cush
ion cover, place four "S" hooks in opening
in cover and close "S" hooks with pliers.
Place "S" in seat frame as shown in Fig
ure 22.

2. Line up seat cover seams to contour of seat
cushion and hog ring front edge of cover to
seat frame as shown in Figure 23.

3. Use spring clips as shown in Figure 24 to
fasten seat cover to side panels.

Figure 22
