Procedure
for Installation of Wheel Disc
on All Model Passenger Cars.
Figure 43
1.
Remove hub cap. Guide
the valve stem
through hole in disc and press firmly into
the wheel at this point. Then press opposite
side into the wheel with other hand applying
pressure around disc in one direction until
outer edge is seated within wheel rim as
shown in figure 44.
Figure 44
2.
The small wood block which accompanies
the wheel disc should be used in conjunction
with a hammer, to gently tap the wheel disc
into its bottom position so that outer por
tion of the wheel disc is flush with wheel
rim. A light tap with hammer and wood
block is sufficient as shown in figure 45.
Figure 45
3.
Replace hub cap and repeat for the three
remaining wheels.
Approximate Flat Rate Time .1 of an hour.

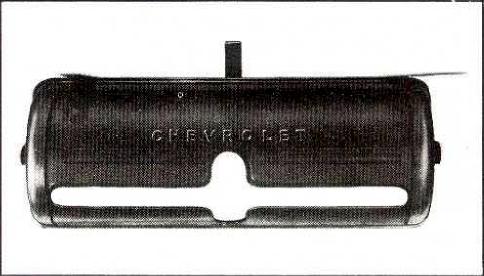

Figure 46
986546 TISSUE DISPENSER
Procedure
for Installation of Tissue Dispenser
on All Model Passenger Cars.
1.
Remove dispenser cover by pulling outward
on ends of spring clips on sides of dispens
er.
2.
Mount center support bracket to dispenser
with two screws, nuts and lockwashers fur
nished in package, making sure nut and lock
washers are on top of bracket on outside of
dispenser, (see figure 47).
3.
Remove screw from left-hand side of vent
control rod and mount tissue dispenser
bracket beneath bracket of vent control rod
and replace screw, (see figure 47).
3a.
If vent control rod has been removed use
screw furnished and mount bracket in same
location as paragraph 3, except tissue dis
penser bracket will fit against instrument
panel, (see figure 48).
