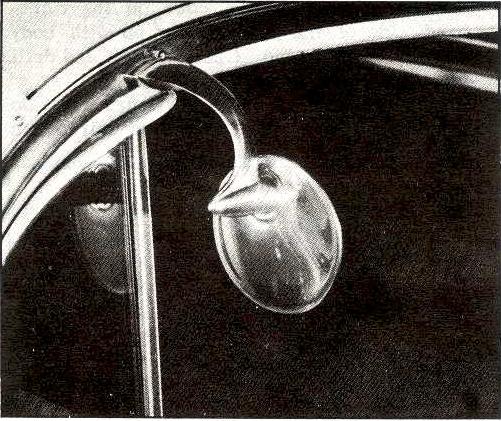

Procedure
for Installing Door Top Outside
Mirror on Deluxe Model Passenger Cars.
I.
Drill 1/4 inch hole in moulding and door,
(see figure 141) hole to be in line with rear
edge of division channel, (see figure 141).
When drilling 1/4 hole start drill 90 degrees
from surface of moulding and drill through
moulding. Drop drill to lower position and
drill through door flange.
2.
Insert wedge between rubber door seal and
door. Insert screw through wedge, door and
moulding. Tighten screw into mirror base,
(see figure 144).
3. Adjust angle of mirror to suit.
Procedure
for Installing Door Top Outside
Mirror on Special Model Passenger Cars.
986533 Left-Hand Door Top Outside Mirror
1.
Remove flat head screw and rear view mir
ror base from mirror assembly, (see figure
145).
