14. Assemble Spring, Bearing, Handle and Han
dle Screw. Tighten Screw securely. Rotate
Handle to see that Pinion and gear Racks
move freely.

15. Tighten Screw "A" in Housing very securely.
THIS MUST BE DONE LAST.

lfi. Pass the wire from Spot Lamp Handle under
the Bracket (see figure 170). Leave a loop
of wire big enough to allow 180o rotation of

the lamp Shaft. Screw Bracket firmly into
place with oval head sheet metal screws.
17. Drill one 1/8" diameter hole (see top of fig
ure 170). Fasten wire along door face with
Screw-on Clip at the 1/8" hole and Clinch
on Clip (see figure 171).

18. Locate tube Clip on door (see figure 171), and
drill two 1/8" holes. Fasten tube clip to
door with two sheet , metal screws.

19. Locate and drill 34" hole from Grommet,
(see figure 170).

20. Remove cowl side trim panel and drill 1/4"
hole in hinge reinforcement (see figure 171)
and insert upper tube clip. With door wide

open, pass wire through 3/4" hole, insert
Grommet in place, and fasten tube in clip.
21. Replace trim panel.

22. Run wire along back of instrument panel
and fasten to main wire harness with exist
ing clips, as illustrated in figure 172.

23. Remove screw from indicated terminal on
battery side of accessory junction block and
install fuse holder as illustrated in figure
172.

NOTE: If car is not equipped with Acces
sory Junction Block, it may be purchased
under part number 986395 for 1950 and
986442 for 1951.

Figure 173

1. Place template, furnished, against left-hand
corner post and center punch two screw
holes. Drill two 1/8 inch holes and mount
rubber gasket and bracket with two sheet
metal screws furnished, (see figure 174).

Figure 174

Adjustments

Tighten the nut on the Friction Bracket "J" (see
figure 168) to adjust the tilting of the lamp head
to your individual driving needs. This is the
only adjustment necessary on your Spot Lamp.

Approximate Flat Rate Time 1 hour.

988173 SAFETYLIGHT

Procedure for Installation of Safetylight
on All Model Trucks.

IMPORTANT: The truck safetylight is designed
to mount on the left-hand corner post of the
truck,

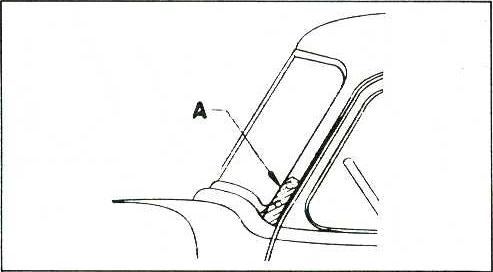

Figure 175
