N J O R D

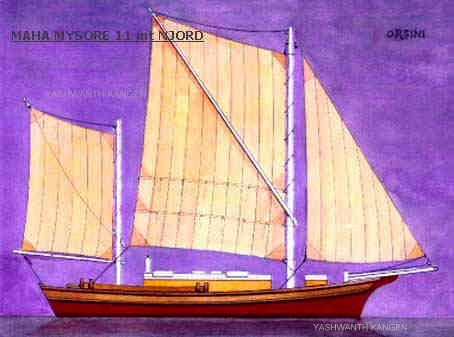

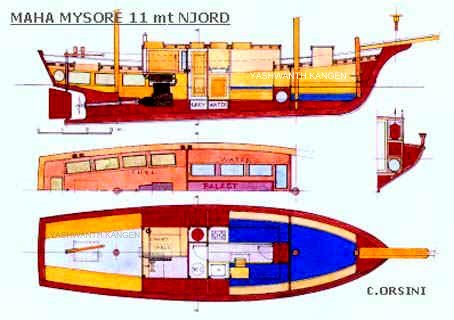

Njord is a 36' wooden motor-sailer which we have built for Mr
C. Orsini, a consultant naval architect of Menton, France. This boat is based on
one of our standard hulls laid-out and rigged as per Mr Orsini's design. The
boat is a strongly built displacement type hull of mainly wild jack wood (artocarpus
hirsuta), carvel planked on sawn frames in our customary style using copper,
brass and SS fastenings. Mr Orisini's boat is installed with an Indian-made
Simpsons (Perkins) Diesel of 28 hp which drives her at a comfortable 7-8 knots.
Basic Specifications
| LOA (Hull) |
37' / 11.2 mt |
| Beam |
10'-6" / 3.2mt |
| Hull Depth (midship) |
6'-6" / 2mt |
| Displacement |
11 m.tons |
| Sail Area |
860 sq.ft (total) |
If you find this class of boat interesting you could discuss
your design requirements directly with Mr Orsini who has designed several other
sailboats including the 14 mt motor-sailers built by us. His address is: 67,
Route de Sospel, 06500 Menton, France. Ph: 33-493357916 Fax:
33-493573278.
|
