This page is under Construction. This site Contains pictures of The new WTTM transmitter site for the city Of Lindenwold,NJ there are lots of photos so if you have a slow Connection it will take awhile to load . I will try to re-organize this page into sections.
Placing down the ground Radial system.
Installing the Shirt(uniPole antenna.
I have Been Busy building this Temporary ATU for the site.
another shot Of the temporary ATU
The Finished temporary ATU ready to be installed

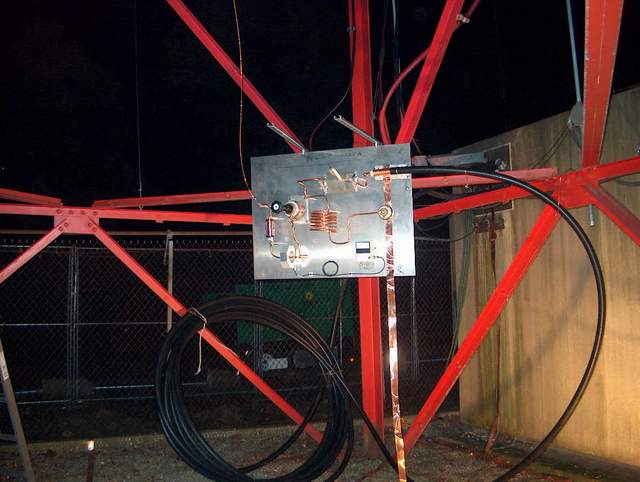

The temporary ATU installed and Tuned..testing Begins at 1kw
The New ATU I built finally installed and Tuned

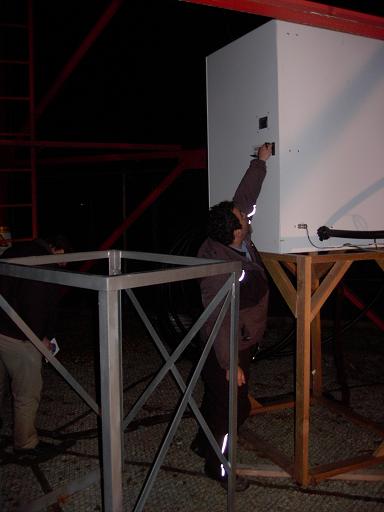

Here I am opening the ATU
notice its on a temporary wooden base the new
metal base was delivered earlier in the day
Also notice I installed a small window above latch to view base Current
without opening door to high voltage hazards.
Notice the lights I installed also with a GFI 20 amp outlet at the bottom of the box

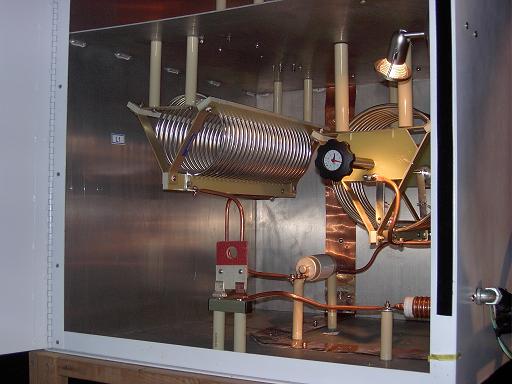

Top Half Output section of ATU unit
notice the Paper tag taped on side wall
this is a line Diagram of the ATU Circuit
Presently Running night Power of 1kw,br>
Bottom Half Input section of ATU Unit
