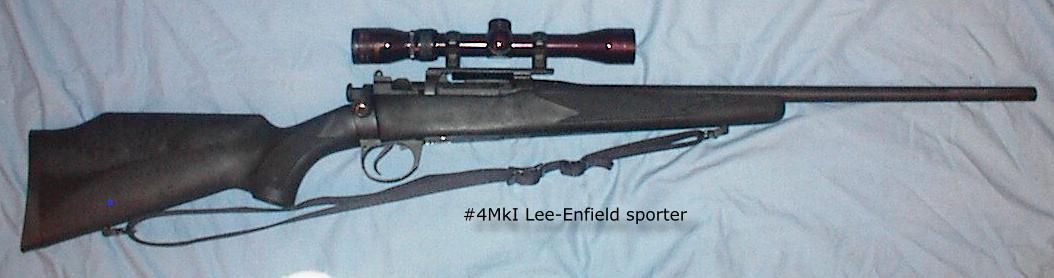

Lee Enfield #4MkI Sporter

Lee-Enfield #4 Mk.1

.303 British

This project started when I purchased a basket case #4 Mk1 Enfield rifle, disassembled, for $30. The previous owner had attempted to sporterize the wood, chopping the length and checkering that looked just horrid. After getting the cosmoline out, the bore looked like a sewer pipe, and the owner had stripped off the blueing of the barrelled receiver and it has rusted in many spots. Still, for $30, I got a magazine, a set of parts and a box of brass in the deal. I assembled and fired it, getting 8" groups at 100 yards. I then noticed that SOG was selling barreled actions for $7.95 each. I ordered two and one turned out to be a very good candidate. I planned to use the rest of the parts gun to make a sporter, but I ran into some bargains that took me down another path. Here is what I did:

Original parts gun, $30

Fiberforce synthetic stock, $55

Barrelled recievers $16

Flush fitting 5 round magazine, $30

Uncle Mikes black nylon sling and swivels $15

Weaver TO-1 scope base & rings $15

Gunsmithing to cut the barrel to 21 1/4" inches, recessed crown, drill & tap for scope base, milling of unneccesary metal from trigger guard and reciever. $60

Used Bushnell Sportsview 3x9 BDC scope, $25

Total cost $245

Was it worth the cost? Well, look at the targets to the right and decide for yourself. The final rifle is 42" in length, 21.25" barrel, flush magazine, weighing it at around 6 1/4 pounds. It uses a Long Branch 1941 Reciever, two groove barrel.


These targets were shot at 100 yards using 50's vintage FN surplus ammo (bundled in cloth bandoliers and strippers). The last target I got stung by a sweatbee and pulled the 5th shot off to the left about 3 inches. These groups are a bit off center, since the scope I bought used turned out to not be horizontally adjustable. It has been sent back to Bushnell for repair. Since there are no provisions for iron sights now, I am using a Simmons 4x scope for the time being. These where shot from a bench, using a Harris bipod borrowed from my Swede M96

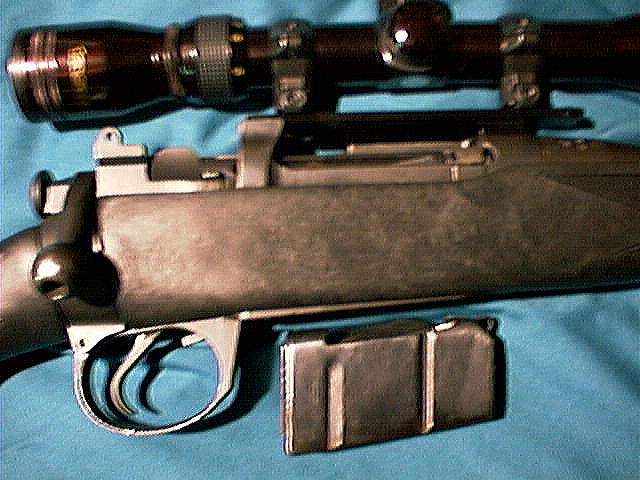

Here is a closeup showing the flush five round magazine.

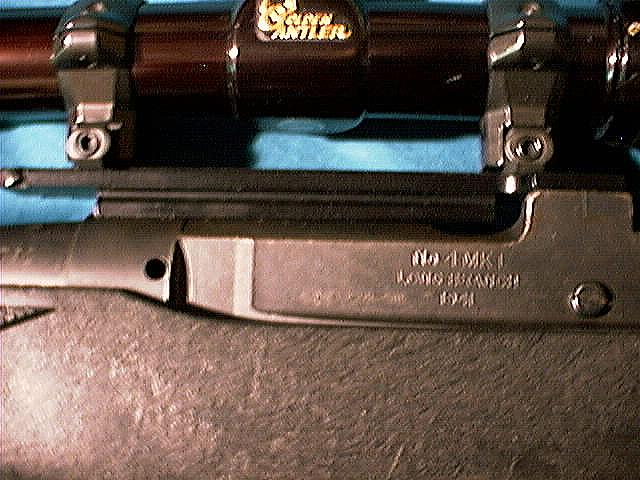

This is a closeup of the Weaver TO-1 scope mount (drilling & tapping required.), Millet rings and a new Tasco wide view scope.

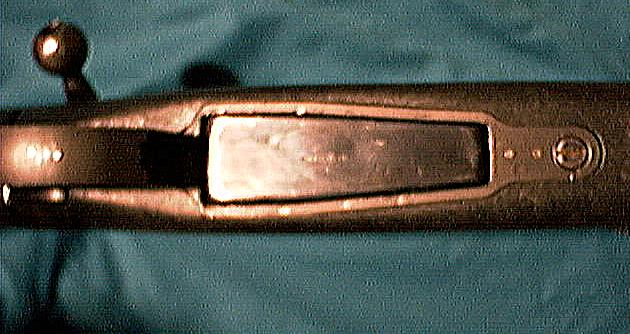

Here you can see the recessed crown job on the muzzle, and a bottom view of the magazine.
