R/C Model airplane
page
The
Mikoyan Guorevich Mig 15 Fagot |
Create : 2018 - new update 7 Fevrier 2021 |
|
|

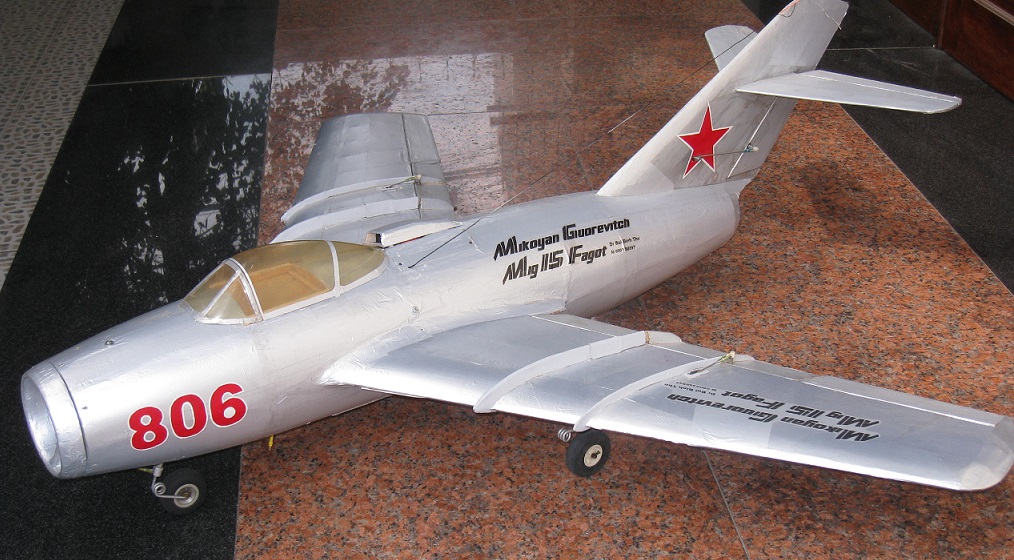

My Mikoyan
Guorevich MIG 15 fAgot
Wingspan
: 56 inch ( 1420mm ) |
Length
: 53 inch ( 1330mm ) |
Low wing air foil NACA 2212.. |
Weight : 5 lbs |
Engine : Duct
fan 105mm with brushless motor DC 1600W ,2130kv ,
3S |
Contruction :
All wood air frame & thin layer solar film covered . |
Radio :
5channel |
|
|
This the
first time I had build and jet R/C airplane was powered by
ducted fan electric DC engine .The origine airfoil of the
Mig 15 is 2212 , the dehydral angle are
- 2 degrees .I decide
the NACA of my Mig 15 Fagot was as same 2212 . . More light , strong material had
been used to contruct
this model airplane ;but the balsa wood is usually the good materiel to
made it. The contructions of this aiplane all are balsa wooden
air-frame; covered by thin alumium solar film . The gears
system ( see on the pic ) are tricyclic , fixed and
sprintable .
Wing : Was an 995square inch and all wooden contructional wing .The
wing- airfoil is NACA 2212 with wing sweep
distance is 45cm and 35 degree wing sweep. The two aileron system
( see figures ) .are independable . Each control by one 2,5 Kg
/ cm2 servos , installed hiding into the wing .The hinges of
the aileron are fourth piece of x ray film and installed at
the middle of the rear wing bar . More hole in the wing foil
lamina was reduce more the total weight of the wing . .
The flap are independable and control by two 2,5kg
servos and can reach 45 geree at down position .All covered
by alumium color solar film |
|

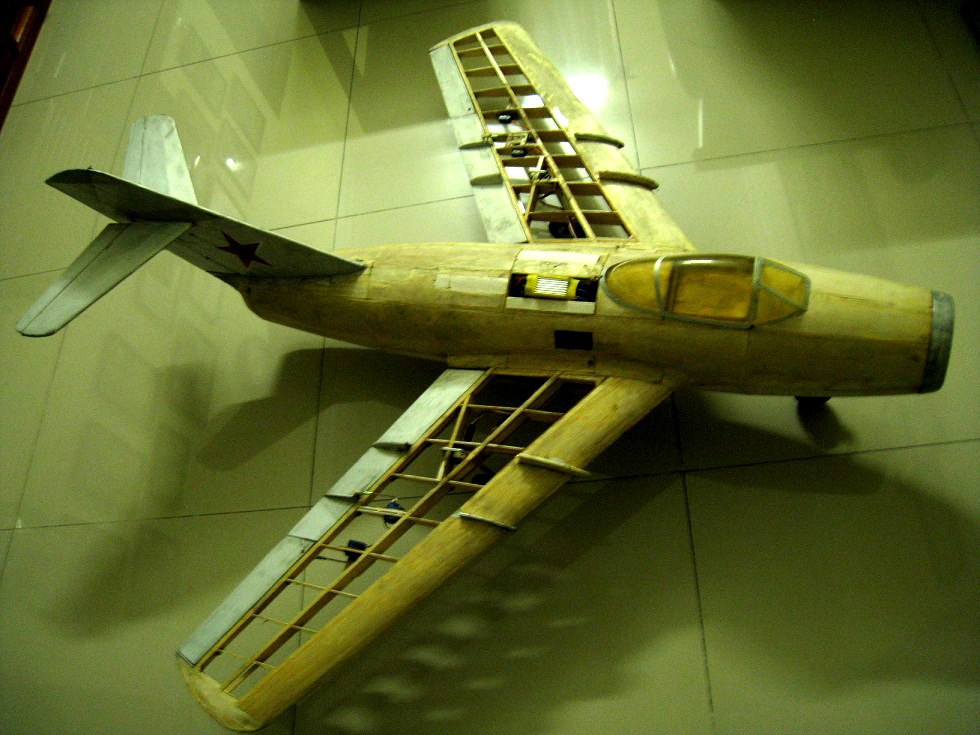

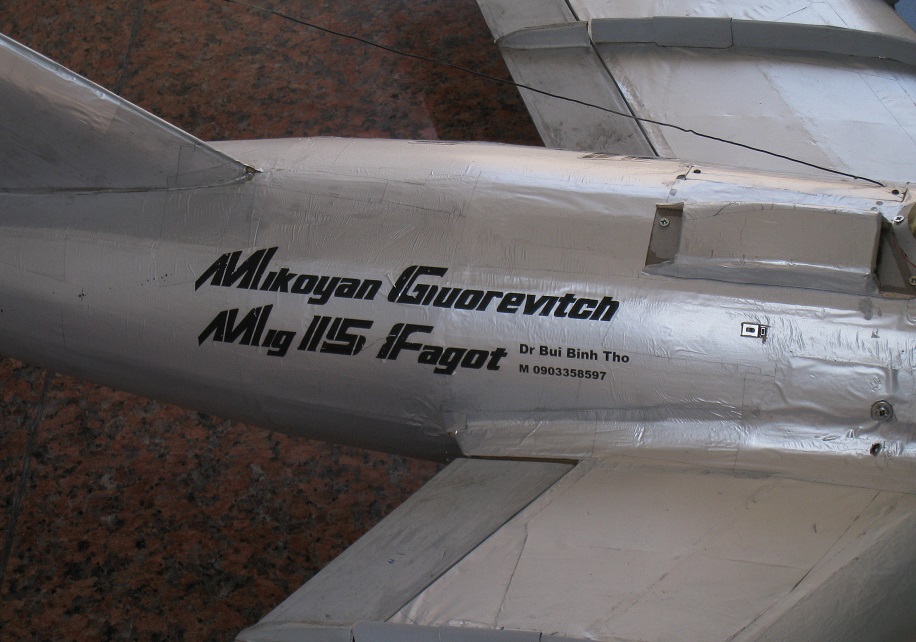

Fuselage :The
main contruction of the fuselage is all wooden air-frame with
four main bar 6/6 x 120 of balsa hard wood ( see pic )
and had two layer . The inner layer is and long 120 mm
tube laminated by one thin layer aluminum and conic at the
end the exhaust pipe The standing of ducth fan an engine
fixed to the fuselage by five long srewn . The outer layer is
balsa wooden in forme the Mig 15 fuselage . The two wing are
fixed to the fuselage by eight balsa wood renforce by hard wood
rod . The rudder is fixed strong on fuselage |
|

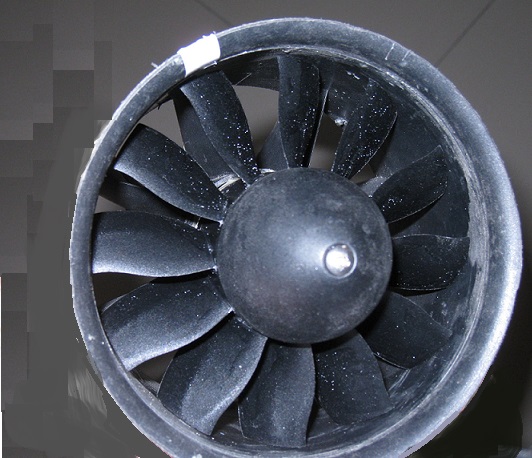

The ducted fan and motor :
I use 105 mm ducted fan powered by one 1600W and
2100rpm/volt brushless DC motor, 120amp ESC with BEC 6v .
Two 3 cell 2200mAh 45C Lipopolymer battery are intall
parallelic under the fuselage can get it up 4400mAh for this
aiplane . The motor be cooled by two aluminum air cooled plate (

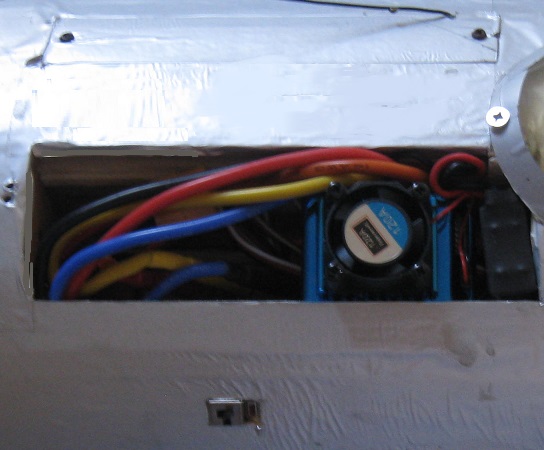

see pic ) and the ESC was cooled by and mini fan ( see pic ) .
That can reach 21.000 -22.000 rpm at full throtle and all can developed 2,2kg static thrust

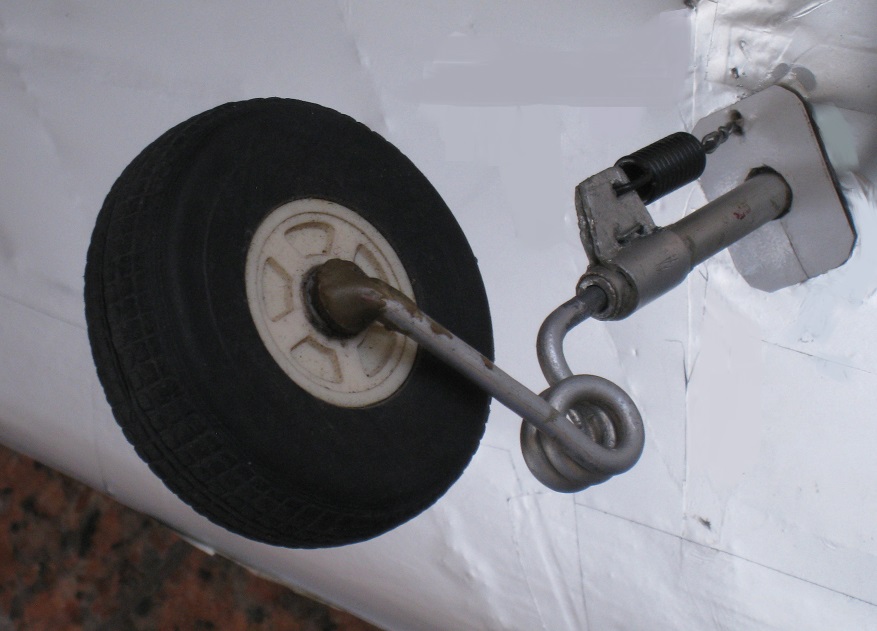

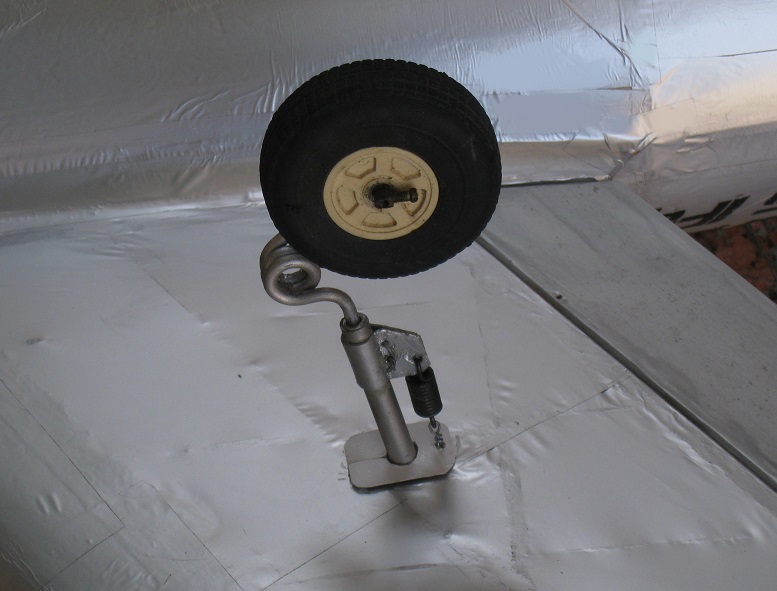

Gear system : This is a fixed tricyclic gear ,all contruction
are aluminum rod and tube ( see pic ) and this is the lightest

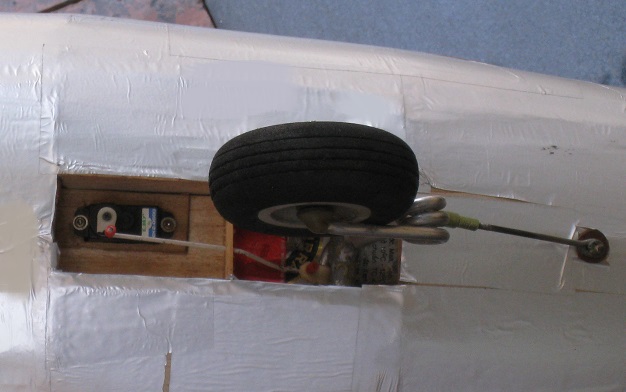

sprintable gear i had made ( see pic ) . The nose gear was
dirigable by an mini 2,5kg servos
R/C system , servo & other link installation :
Four 2,5kg mini servo for elevator , rudder , aileron & one mini servo
for nose gear .
. The receiver
and the ESC are intall
fixed in high of the fuselage and adjust for the CG (
Center of gravity ) at 60%-65% from the front of the wing cross section . The receiver
was place on the highest of the fuselage in the pilot copit
|

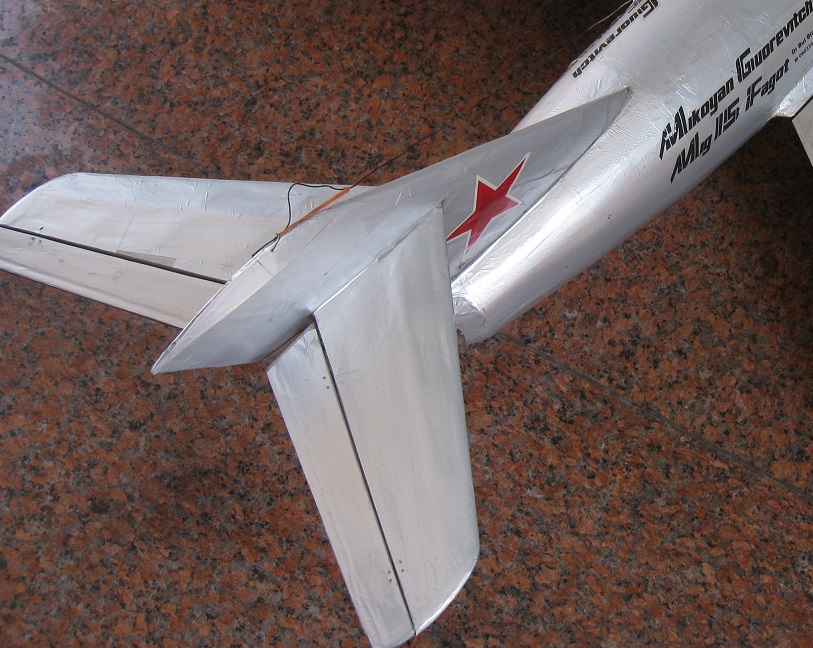

The rudder and elevator's rod are two 2/32 steel wire fixed
at the end ( see pic ) . These are light , hard and had
any trouble in working Rudder , elevator , aileron adjust & flying test : Up
2/3 and down 1/3 inch for elevator . Right 3/4 and lelf 3/4 for
rudder and 1/2 inch for the aileron . On the first fly ,
reduce some on the effect-angle of the aileron an elevator
and slight trim down on elevator ( on the first test flight ).
|
On a
clear and calm sunday morning , I made my first flying test ...... |
Click
to see the
character and outdoor images |
