| Two year ago ,
I was finding out an 120A RC ESC with forward and running back
progamme system , which this i decide to built an remorqueur power
boat with the forme of the
power-boat , boat shell body , and a
long range transmitter 72 mHz system . |

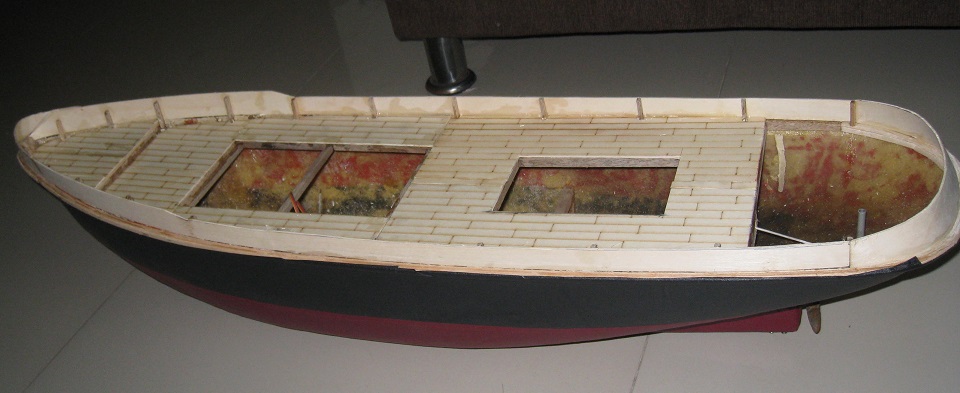

| The boat-shell
: I use two thin layer fiber-glass to stick on the inner surface of
an old outer-cast of the power boat with resine . The boat shell received was
an very beautiful ideal shell than any wooden boat-shell you can
have . I will detail speaking of
this category in the article : How
to made a model airplane kit part by using composit - fiber glass materiel |
|
|
| |

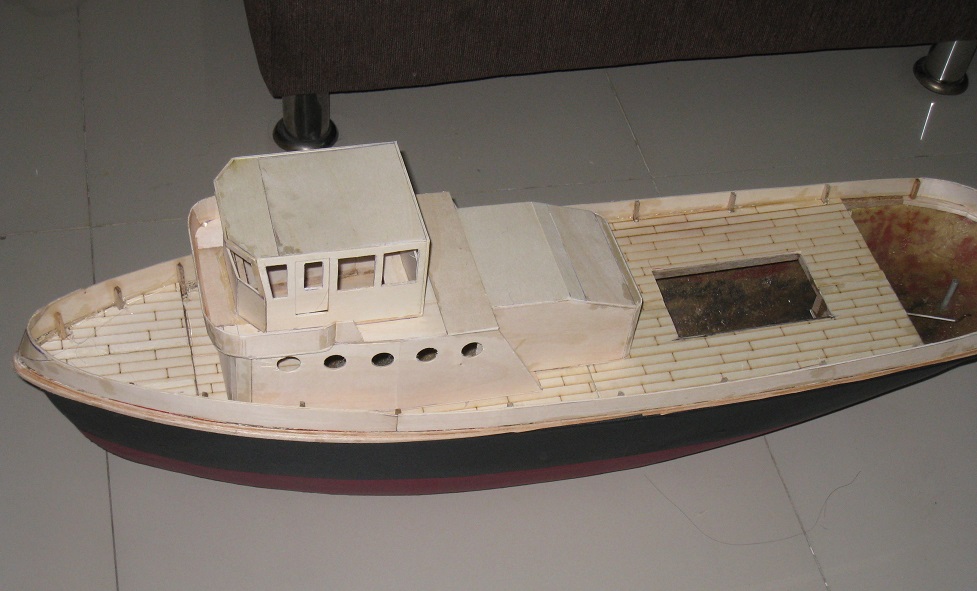

The deck , the pilot house.... etc, all are made by 2mm plywood . I use
the super glue X 2000 with steering pin renforced for the
connection into the composit wall and the wood
 |
The deck , the pilot house.... etc,
all are made by plywood . I use the super glue X 2000 with
steering pin renforced for the connection into the composit
a-wall and the wood |
|
|
|

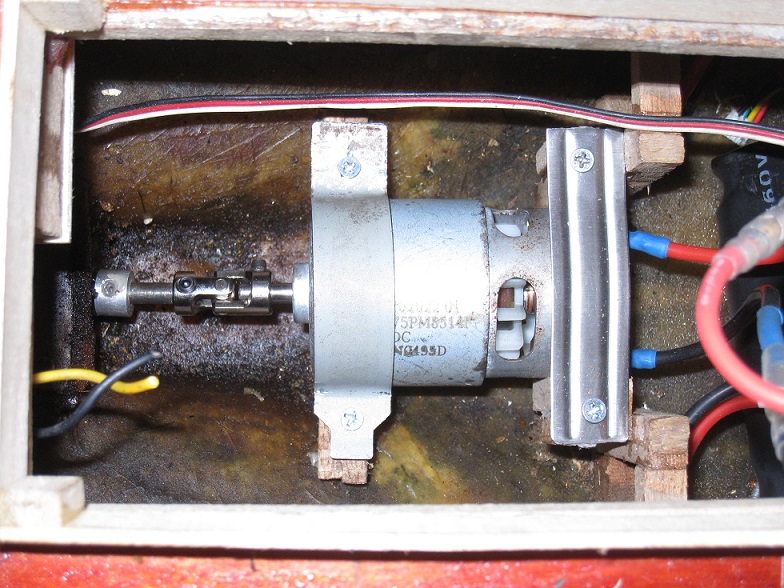

| Motor and Power supply : An
750 DC motor is the best choice . I use an boat - car 120A
bruhsed ESC with three step : Forward - Stop -
Reverse speed control this is a good and simple way to control
the boat speed and change the way . An 9 volt 9 , 6000 mAh LiFePo4
rechargable battery with full charge will give up 10' running easily |
| ;
|

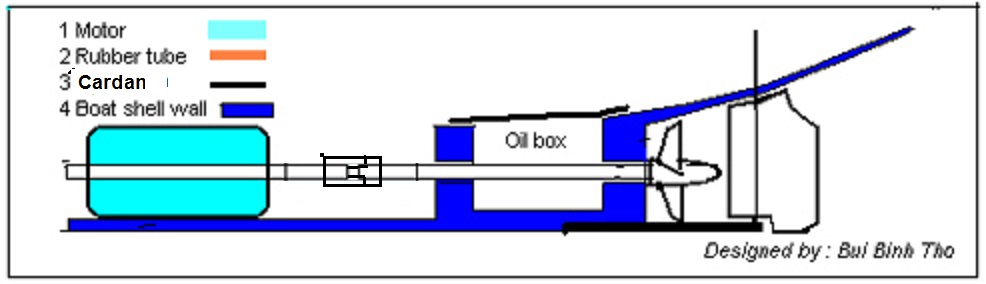

| Tranmission systeme : I used an
steel cadran 5mm to conect the motor sharp with the propeller boat
axis ( see pic ) |
|
The propeller and the motor - propeller
tranmission : A tripalm 1-3/8 inch diameter and 1-4/8 inch pitch
propeller give the best resume, and I use an 5mm cardan to connect
the motor axis with propeller sharp |
| . |
 |
| Radio control system : A
Futaba two - four channel radio control system is choice I use S3003 servo ; one for
the rudder and one pin conect to ESC for throttle , forward running and back , it
work any trouble |
| Running test : A sun day
morning , I made the running test |
| : |
|
|
|
Bien Hoa - April 03 . 2022 Bui Binh Tho MD |
| |
|
